Description

Sensing type	Narrow beam reflective type
Sensing distance	200mm
Sensing target	Opaque, Translucent material
Light source	Infrared LED(850nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 45mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by control wire)
Control output	PNP open collector
Connection type	Cable type(Ø5, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-10 to 60℃, storage: -25 to 75℃
Protection structure	IP66
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 20% at rated sensing distance
Material	Case-Polyamide(black), Sensing part-Polycarbonate lens
Accessories	M18 fixing nut: 2, adjustment screwdriver
Weight	Approx. 140g(approx. 100g)

Product form

Sensing type Narrow beam reflective type Sensing distance 200mm Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time... Read more

SKU: BRP200-DDTN-P

$36.49 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Sensing type	Narrow beam reflective type
Sensing distance	200mm
Sensing target	Opaque, Translucent material
Light source	Infrared LED(850nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 45mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by control wire)
Control output	PNP open collector
Connection type	Cable type(Ø5, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-10 to 60℃, storage: -25 to 75℃
Protection structure	IP66
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 20% at rated sensing distance
Material	Case-Polyamide(black), Sensing part-Polycarbonate lens
Accessories	M18 fixing nut: 2, adjustment screwdriver
Weight	Approx. 140g(approx. 100g)

Reviews

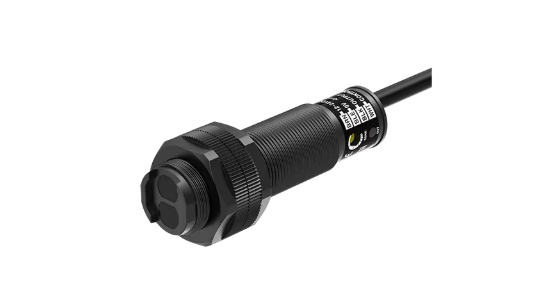

Name: Autonics Photoelectric Sensor, Photoelectric Type BRP200-DDTN-P
Brand: Autonics
SKU: BRP200-DDTN-P
Price: 36.49 USD
Availability: InStock

Autonics Photoelectric Sensor, Photoelectric Type BRP200-DDTN-P
