Description

Sensing type	Diffuse reflective type
Sensing distance	100mm
Sensing target	Opaque, Translucent material
Light source	Infrared LED(850nm)
Response time	Max. 1ms
Power voltage	10-30VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by control wire)
Control output	NPN open collector
Connection type	Cable type(Ø4, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 60℃, storage: -30 to 70℃
Protection structure	IP67(IEC standard)
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 20% at rated sensing distance
Material	ㆍCase: brass, Ni-plate ㆍLens, Lens cover: polymethyl methacrylate acrylic
Weight	Approx. 150g(approx. 70g)

Product form

Sensing type Diffuse reflective type Sensing distance 100mm Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max.... Read more

SKU: BRQM100-DDTA

$32.86 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Sensing type	Diffuse reflective type
Sensing distance	100mm
Sensing target	Opaque, Translucent material
Light source	Infrared LED(850nm)
Response time	Max. 1ms
Power voltage	10-30VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by control wire)
Control output	NPN open collector
Connection type	Cable type(Ø4, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 60℃, storage: -30 to 70℃
Protection structure	IP67(IEC standard)
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 20% at rated sensing distance
Material	ㆍCase: brass, Ni-plate ㆍLens, Lens cover: polymethyl methacrylate acrylic
Weight	Approx. 150g(approx. 70g)

Reviews

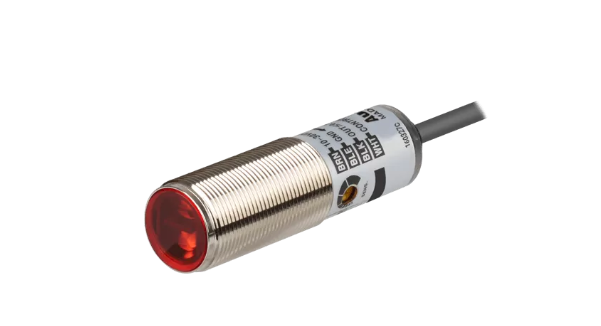

Name: Autonics Photoelectric Sensor, Photoelectric Type BRQM100-DDTA
Brand: Autonics
SKU: BRQM100-DDTA
Price: 32.86 USD
Availability: InStock

Autonics Photoelectric Sensor, Photoelectric Type BRQM100-DDTA
