Description

Sensing type	Through-beam type
Sensing distance	20m
Sensing target	Opaque material of min. Ø7mm
Light source	Red LED(660nm)
Response time	Max. 1ms
Power voltage	10-30VDC ±10%(ripple P-P: max. 10%)
Current consumption	Emitter/Receiver: Max. 20mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by control wire)
Control output	PNP open collector
Connection type	Connector type(M12)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 60℃, storage: -30 to 70℃
Protection structure	IP67(IEC standard), IP69K(DIN standard)
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	ㆍCase: stainless steel 316L ㆍLens, Lens cover: polymethyl methacrylate acrylic
Weight	Approx. 160g (approx. 50g)

Product form

Sensing type Through-beam type Sensing distance 20m Sensing target Opaque material of min. Ø7mm Light source Red LED(660nm) Response time... Read more

SKU: BRQT20M-TDTA-C-P

$68.41 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Sensing type	Through-beam type
Sensing distance	20m
Sensing target	Opaque material of min. Ø7mm
Light source	Red LED(660nm)
Response time	Max. 1ms
Power voltage	10-30VDC ±10%(ripple P-P: max. 10%)
Current consumption	Emitter/Receiver: Max. 20mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by control wire)
Control output	PNP open collector
Connection type	Connector type(M12)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 60℃, storage: -30 to 70℃
Protection structure	IP67(IEC standard), IP69K(DIN standard)
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	ㆍCase: stainless steel 316L ㆍLens, Lens cover: polymethyl methacrylate acrylic
Weight	Approx. 160g (approx. 50g)

Reviews

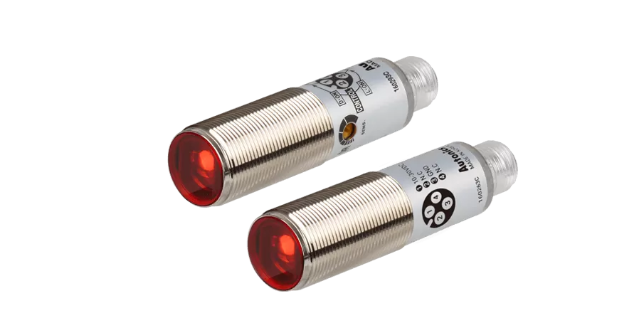

Name: Autonics Photoelectric Sensor, Photoelectric Type BRQT20M-TDTA-C-P
