Description

Operation method	Push Button Type
Button operation_Stop position	5.0±0.4mm
Button operation_Output switching position	4.0±0.5mm
Button operation_Operation limit position	Max. 0mm
Light source	Infrared LED(940nm)
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 35mA
Operation load	Max. 3N(Max. 0.3kgf)
Operation mode	Light ON(output OFF when button ispushed)
Control output	PNP open collector
Connection type	Cable type(Ø3, 1m)
Environment_Ambient illumination	Fluorescent lamp: Max. 1,000lx(received illumination)
Environment_Ambient temperature	-20 to 55℃, storage: -25 to 70℃
Protection structure	IP40
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
External input_Response	Max. 1ms
Material	Case: Polycarbonate + Glass fiber, Button: Polyoxymethylene, Sleeve: SUS304(steel use Stainless 304)
Weight	Approx. 50g(approx. 30g)

Product form

Operation method Push Button Type Button operation_Stop position 5.0±0.4mm Button operation_Output switching position 4.0±0.5mm Button operation_Operation limit position Max. 0mm... Read more

SKU: BS5-P1ML-P

$27.78 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Operation method	Push Button Type
Button operation_Stop position	5.0±0.4mm
Button operation_Output switching position	4.0±0.5mm
Button operation_Operation limit position	Max. 0mm
Light source	Infrared LED(940nm)
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 35mA
Operation load	Max. 3N(Max. 0.3kgf)
Operation mode	Light ON(output OFF when button ispushed)
Control output	PNP open collector
Connection type	Cable type(Ø3, 1m)
Environment_Ambient illumination	Fluorescent lamp: Max. 1,000lx(received illumination)
Environment_Ambient temperature	-20 to 55℃, storage: -25 to 70℃
Protection structure	IP40
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
External input_Response	Max. 1ms
Material	Case: Polycarbonate + Glass fiber, Button: Polyoxymethylene, Sleeve: SUS304(steel use Stainless 304)
Weight	Approx. 50g(approx. 30g)

Reviews

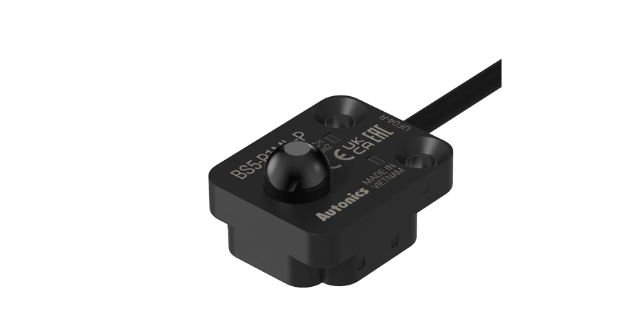

Name: Autonics photoelectric micro sensor Push Button Type BS5-P1ML-P
Brand: Autonics
SKU: BS5-P1ML-P
Price: 27.78 USD
Availability: InStock

Autonics photoelectric micro sensor Push Button Type BS5-P1ML-P
