Description

Sensing type	BGS reflective type
Sensing distance	1 to 15mm
Sensing target	Opaque, Translucent material(min. sensing target: non-illuminated objects of Ø0.2mm)
Light source	Red LED(650nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 20mA
Operation mode	Dark ON
Control output	PNP open collector
Connection type	Cable type(Ø2.5, 2m)
Environment_Ambient illumination	Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 55℃, storage: -40 to 70℃
Protection structure	IP67
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 5% at sensing distance
Material	Case: polybutylene terephthalate, sensing part: polymethyl methacrylate, bracket: SUS304(steel use stainless 304), bolt: carbon steel, sleeve: SUS304(steel use stainless 304)
Accessories	Fixing bracket, M2 bolt: 2
Weight	Approx. 40g (approx. 25g)

Product form

Sensing type BGS reflective type Sensing distance 1 to 15mm Sensing target Opaque, Translucent material(min. sensing target: non-illuminated objects of... Read more

SKU: BTF15-BDTD-P

$42.80 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Sensing type	BGS reflective type
Sensing distance	1 to 15mm
Sensing target	Opaque, Translucent material(min. sensing target: non-illuminated objects of Ø0.2mm)
Light source	Red LED(650nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 20mA
Operation mode	Dark ON
Control output	PNP open collector
Connection type	Cable type(Ø2.5, 2m)
Environment_Ambient illumination	Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 55℃, storage: -40 to 70℃
Protection structure	IP67
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 5% at sensing distance
Material	Case: polybutylene terephthalate, sensing part: polymethyl methacrylate, bracket: SUS304(steel use stainless 304), bolt: carbon steel, sleeve: SUS304(steel use stainless 304)
Accessories	Fixing bracket, M2 bolt: 2
Weight	Approx. 40g (approx. 25g)

Reviews

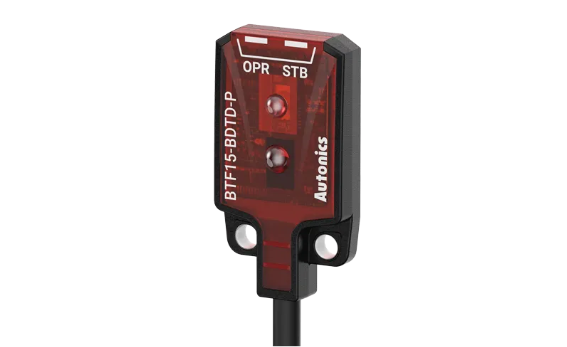

Name: Autonics Photoelectric Sensor, Photoelectric Type BTF15-BDTD-P
Brand: Autonics
SKU: BTF15-BDTD-P
Price: 42.8 USD
Availability: InStock

Autonics Photoelectric Sensor, Photoelectric Type BTF15-BDTD-P
