Description

Sensing type	Through-beam type
Sensing distance	1m
Sensing target	Opaque material of min. Ø2mm
Light source	Red LED(650nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Emitter/Receiver: Max. 20mA
Operation mode	Dark ON
Control output	PNP open collector
Connection type	Cable type(Ø2.5, 2m)
Environment_Ambient illumination	Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 55℃, storage: -40 to 70℃
Protection structure	IP67
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: polybutylene terephthalate, sensing part: polymethyl methacrylate, bracket: SUS304(steel use stainless 304), bolt: carbon steel, sleeve: SUS304(steel use stainless 304)
Accessories	Fixing bracket, M2 bolt: 4
Weight	Approx. 70g (approx. 40g)

Product form

Sensing type Through-beam type Sensing distance 1m Sensing target Opaque material of min. Ø2mm Light source Red LED(650nm) Response time... Read more

SKU: BTF1M-TDTD-P

$42.80 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Sensing type	Through-beam type
Sensing distance	1m
Sensing target	Opaque material of min. Ø2mm
Light source	Red LED(650nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Emitter/Receiver: Max. 20mA
Operation mode	Dark ON
Control output	PNP open collector
Connection type	Cable type(Ø2.5, 2m)
Environment_Ambient illumination	Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 55℃, storage: -40 to 70℃
Protection structure	IP67
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: polybutylene terephthalate, sensing part: polymethyl methacrylate, bracket: SUS304(steel use stainless 304), bolt: carbon steel, sleeve: SUS304(steel use stainless 304)
Accessories	Fixing bracket, M2 bolt: 4
Weight	Approx. 70g (approx. 40g)

Reviews

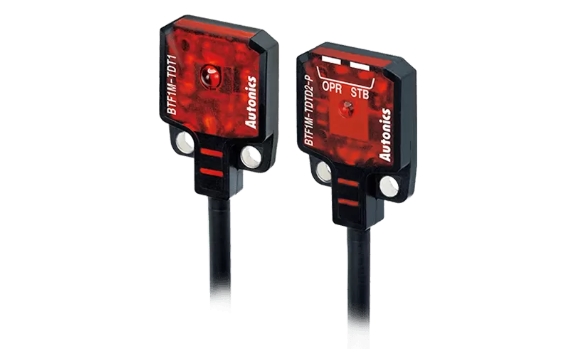

Name: Autonics Photoelectric Sensor, Photoelectric Type BTF1M-TDTD-P
