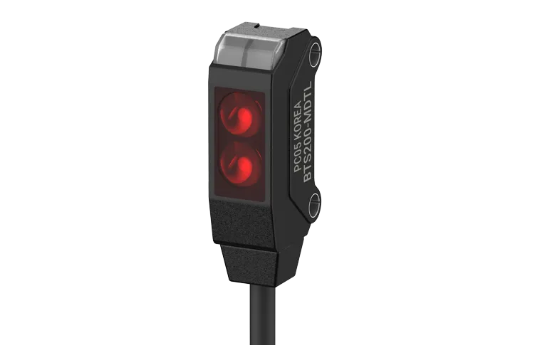

Autonics Photoelectric Sensor, Photoelectric Type BTS200-MDTL

Description

Sensing type Retroreflective type
Sensing distance 10~200mm
Sensing target Opaque material of min. Ø27mm(min. sensing target: opaque material of Ø2mm)
Light source Red LED(650nm)
Response time Max. 1ms
Power voltage 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
Current consumption Max. 20mA
Operation mode Light ON
Control output NPN open collector
Connection type Cable type(Ø2.5, 2m)
Environment_Ambient illumination Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -20 to 55℃, storage: -30 to 70℃
Protection structure IP67
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Material Case: Polybutylene terephthalate, Sensing part: Polymethyl methacrylate, Bracket: Stainless steel 304,
Bolt: Carbon steel wire for cold heading(SWCH10A)
Weight Approx. 45g(approx. 25g)
Product form

Sensing type Retroreflective type Sensing distance 10~200mm Sensing target Opaque material of min. Ø27mm(min. sensing target: opaque material of Ø2mm)... Read more

SKU: BTS200-MDTL

$37.30 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    Sensing type Retroreflective type
    Sensing distance 10~200mm
    Sensing target Opaque material of min. Ø27mm(min. sensing target: opaque material of Ø2mm)
    Light source Red LED(650nm)
    Response time Max. 1ms
    Power voltage 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
    Current consumption Max. 20mA
    Operation mode Light ON
    Control output NPN open collector
    Connection type Cable type(Ø2.5, 2m)
    Environment_Ambient illumination Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
    Environment_Ambient temperature -20 to 55℃, storage: -30 to 70℃
    Protection structure IP67
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Material Case: Polybutylene terephthalate, Sensing part: Polymethyl methacrylate, Bracket: Stainless steel 304,
    Bolt: Carbon steel wire for cold heading(SWCH10A)
    Weight Approx. 45g(approx. 25g)
