Description

Sensing type	Convergent reflective type
Sensing distance	5 to 30mm
Sensing target	Opaque, Translucent material(min. sensing target: Ø0.15mm)
Light source	Red LED(650nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 20mA
Operation mode	Dark ON
Control output	PNP open collector
Connection type	Cable type(Ø2.5, 2m)
Environment_Ambient illumination	Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-20 to 55℃, storage: -30 to 70℃
Protection structure	IP67
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 15% of maximum sensing distance
Material	Case: Polybutylene terephthalate, Sensing part: Polymethyl methacrylate, Bracket: Stainless steel 304, Bolt: Carbon steel wire for cold heading(SWCH10A)
Weight	Approx. 45g(approx. 25g)

Product form

Sensing type Convergent reflective type Sensing distance 5 to 30mm Sensing target Opaque, Translucent material(min. sensing target: Ø0.15mm) Light source... Read more

SKU: BTS30-LDTD-P

$42.80 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Sensing type	Convergent reflective type
Sensing distance	5 to 30mm
Sensing target	Opaque, Translucent material(min. sensing target: Ø0.15mm)
Light source	Red LED(650nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 20mA
Operation mode	Dark ON
Control output	PNP open collector
Connection type	Cable type(Ø2.5, 2m)
Environment_Ambient illumination	Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-20 to 55℃, storage: -30 to 70℃
Protection structure	IP67
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 15% of maximum sensing distance
Material	Case: Polybutylene terephthalate, Sensing part: Polymethyl methacrylate, Bracket: Stainless steel 304, Bolt: Carbon steel wire for cold heading(SWCH10A)
Weight	Approx. 45g(approx. 25g)

Reviews

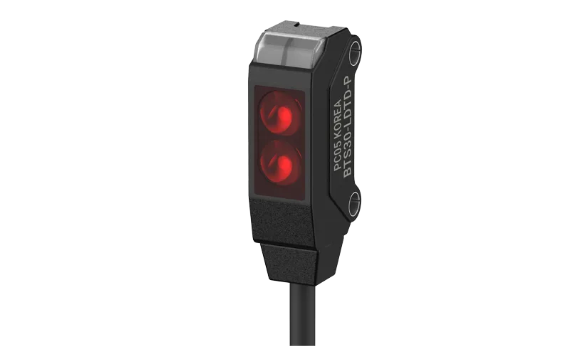

Name: Autonics Photoelectric Sensor, Photoelectric Type BTS30-LDTD-P
Brand: Autonics
SKU: BTS30-LDTD-P
Price: 42.8 USD
Availability: InStock

Autonics Photoelectric Sensor, Photoelectric Type BTS30-LDTD-P

0 out of 5 stars

This product has no reviews yet
