Description

Sensing type	Through-beam type
Sensing Channel	1-channel
Sensing distance	50mm
Sensing target	Opaquematerial of min. Ø4mm
Light source	Infrared LED(940nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Sensitivity adjustment	Fixed
Operation mode	Light ON/Dark ON(set by control wire)
Control output	NPN open collector
Connection type	Cable connector type
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 65℃, storage: -25 to 70℃
Protection structure	IP66
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: Acrylonitrile butadiene styrene, Cap: Polycarbonate
Weight	Approx. 90g

Product form

Sensing type Through-beam type Sensing Channel 1-channel Sensing distance 50mm Sensing target Opaquematerial of min. Ø4mm Light source Infrared LED(940nm)... Read more

SKU: BUP-50-E

$36.49 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

Sensing type	Through-beam type
Sensing Channel	1-channel
Sensing distance	50mm
Sensing target	Opaquematerial of min. Ø4mm
Light source	Infrared LED(940nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Sensitivity adjustment	Fixed
Operation mode	Light ON/Dark ON(set by control wire)
Control output	NPN open collector
Connection type	Cable connector type
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 65℃, storage: -25 to 70℃
Protection structure	IP66
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: Acrylonitrile butadiene styrene, Cap: Polycarbonate
Weight	Approx. 90g

Reviews

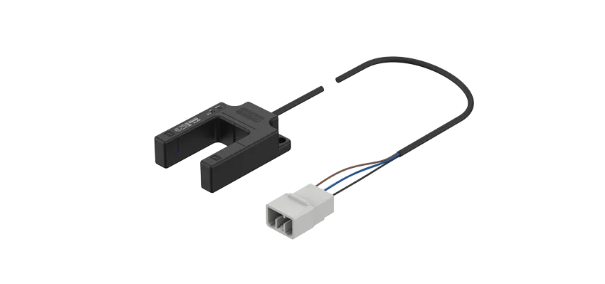

Name: Autonics Photoelectric Sensor, Photoelectric Type BUP-50-E
Brand: Autonics
SKU: BUP-50-E
Price: 36.49 USD
Availability: InStock

Autonics Photoelectric Sensor, Photoelectric Type BUP-50-E
