Description

Sensing type	Through-beam type(direct beam)
Sensing distance	0.1 to 7m
Light source	Infrared LED(850nm modulated)
Optical axis pitch	20mm
Number of optical axes	32
Sensing height/Total length	620/640mm
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Control output	NPN open collector
Operation mode	Light ON
Environment_Ambient illumination	Ambient light: Max. 100,000lx(receiver illumination)
Environment_Ambient temperature	-10 to 55℃, storage: -20 to 60℃
Connection type	Cable connector type
Protection structure	IP65(IEC standard)
Environment_Ambient humidity	35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation)
Min. sensing target	Opaque material of min. Ø30mm
Response time	Max. 10ms
Material	• Case: Aluminum • Front cover, sensing part: Acrylic
Cable specification	Ø5mm, 4-wire, 300mm, M12 connector
Accessories	Bracket A: 4, Bracket B: 4, Fixing bolt: 8
Weight	BW20-48: Approx. 2.1kg(approx. 1.4kg)

Product form

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number... Read more

SKU: BW20-32

$464.27 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Sensing type	Through-beam type(direct beam)
Sensing distance	0.1 to 7m
Light source	Infrared LED(850nm modulated)
Optical axis pitch	20mm
Number of optical axes	32
Sensing height/Total length	620/640mm
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Control output	NPN open collector
Operation mode	Light ON
Environment_Ambient illumination	Ambient light: Max. 100,000lx(receiver illumination)
Environment_Ambient temperature	-10 to 55℃, storage: -20 to 60℃
Connection type	Cable connector type
Protection structure	IP65(IEC standard)
Environment_Ambient humidity	35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation)
Min. sensing target	Opaque material of min. Ø30mm
Response time	Max. 10ms
Material	• Case: Aluminum • Front cover, sensing part: Acrylic
Cable specification	Ø5mm, 4-wire, 300mm, M12 connector
Accessories	Bracket A: 4, Bracket B: 4, Fixing bolt: 8
Weight	BW20-48: Approx. 2.1kg(approx. 1.4kg)

Reviews

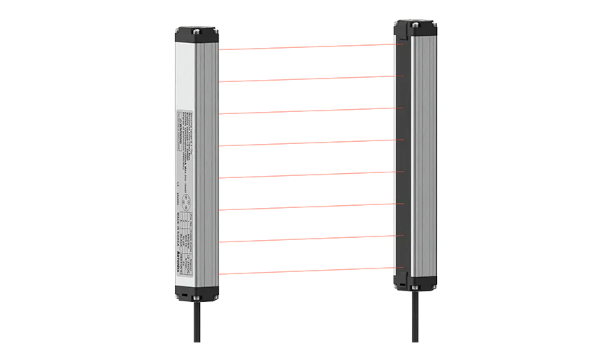

Name: Autonics Area Sensor, Through-beam type(direct beam) BW20-32
