| Sensing type |

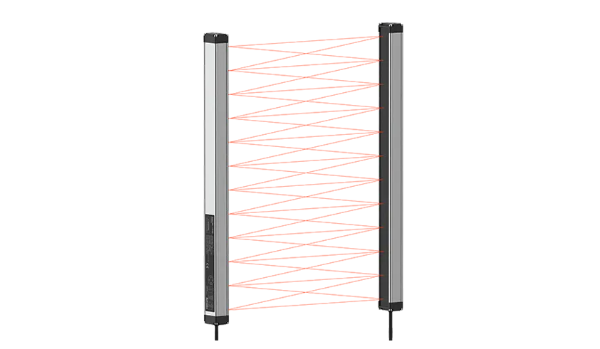

Through-beam type(cross beam) |
| Sensing distance |
1 to 7m |
| Light source |
Infrared LED(850nm modulated) |
| Optical axis pitch |
40mm |
| Number of optical axes |
16 |
| Sensing height |
600mm |
| Power voltage |
12-24VDC  ±10%(ripple P-P: max. 10%) |
| Control output |
NPN open collector |
| Operation mode |
Dark ON |
| Environment_Ambient illumination |
Ambient light: Max. 100,000lx(receiver illumination) |
| Environment_Ambient temperature |
-10 to 55℃, storage: -20 to 60℃ |
| Connection type |
Cable connector type(Ø5, 300mm, M12) |
| Protection structure |
IP67(IEC standard) |
| Environment_Ambient humidity |
35 to 85% RH, storage: 35 to 85% RH |
| Min. sensing target |
Opaque material of min. Ø50mm |
| Response time |
Max. 50ms |
| Material |
Case: Aluminum, Sensing part and indicator: Acrylic |
| Cable specification |
Ø5mm, 4-wire, 300mm, M12 connector |
| Accessories |
Bracket A: 4, Bracket B: 4, Fixing bolt: 8 |
| Weight |
Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H) |
