Description

Sensing type	Through-beam type(cross beam)
Sensing distance	1 to 7m
Light source	Infrared LED(850nm modulated)
Optical axis pitch	80mm
Number of optical axes	14
Sensing height	1,040mm
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Control output	NPN open collector
Operation mode	Dark ON
Environment_Ambient illumination	Ambient light: Max. 100,000lx(receiver illumination)
Environment_Ambient temperature	-10 to 55℃, storage: -20 to 60℃
Connection type	Cable connector type(Ø5, 300mm, M12)
Protection structure	IP67(IEC standard)
Korean Railway Standards	KRS SG 0068
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Min. sensing target	Opaque material of min. Ø90mm
Response time	Max. 50ms
Material	Case: Aluminum, Sensing part and indicator: Acrylic
Cable specification	Ø5mm, 4-wire, 300mm, M12 connector
Accessories	Bracket A: 4, Bracket B: 4, Fixing bolt: 8
Weight	Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)

Product form

Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 80mm Number... Read more

SKU: BWC80-14HD

$446.96 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Sensing type	Through-beam type(cross beam)
Sensing distance	1 to 7m
Light source	Infrared LED(850nm modulated)
Optical axis pitch	80mm
Number of optical axes	14
Sensing height	1,040mm
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Control output	NPN open collector
Operation mode	Dark ON
Environment_Ambient illumination	Ambient light: Max. 100,000lx(receiver illumination)
Environment_Ambient temperature	-10 to 55℃, storage: -20 to 60℃
Connection type	Cable connector type(Ø5, 300mm, M12)
Protection structure	IP67(IEC standard)
Korean Railway Standards	KRS SG 0068
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Min. sensing target	Opaque material of min. Ø90mm
Response time	Max. 50ms
Material	Case: Aluminum, Sensing part and indicator: Acrylic
Cable specification	Ø5mm, 4-wire, 300mm, M12 connector
Accessories	Bracket A: 4, Bracket B: 4, Fixing bolt: 8
Weight	Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)

Reviews

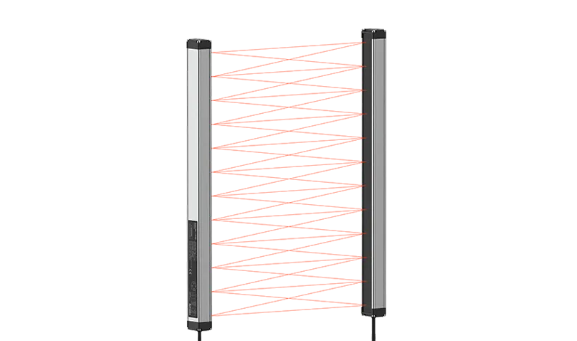

Name: Autonics Area Sensor, Through-beam type(cross beam) BWC80-14HD
