| Sensing type |

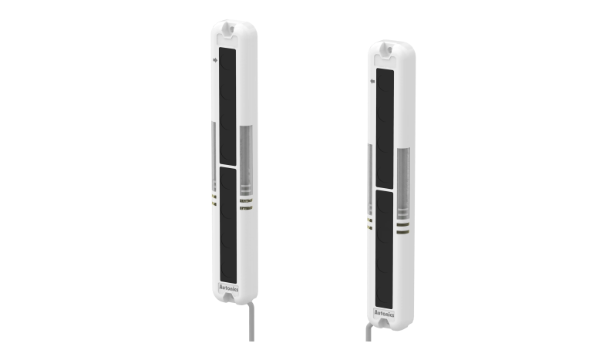

Through-beam type(direct beam) |
| Sensing distance |
0.1 to 5m |
| Light source |
Infrared LED(850nm modulated) |
| Optical axis pitch |
20mm |
| Number of optical axes |
16 |
| Sensing height/Total length |
300/350mm |
| Power voltage |
12-24VDC  ±10%(ripple P-P: max. 10%) |
| Control output |
PNP open collector |
| Operation mode |
Light ON/Dark ON(set by switch) |
| Environment_Ambient illumination |
Sunlight: Max. 10,000lx(receiver illumination) |
| Environment_Ambient temperature |
-10 to 55℃, storage: -20 to 60℃ |
| Connection type |
Cable type(Ø3.5, 3m) |
| Protection structure |
IP40 |
| Environment_Ambient humidity |
35 to 85% RH, storage: 35 to 85% RH |
| Min. sensing target |
Opaque material of min. Ø30mm |
| Response time |
Max. 6ms(frequency B selection is max. 7ms) |
| Material |
Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate |
| Cable specification |
Ø3.5mm, 4-wire, 3m(emitter: Ø3.5mm, 4-wire, 3m)
(AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm) |
| Weight |
Approx. 620g(approx. 360g) |
