| Sensing type |

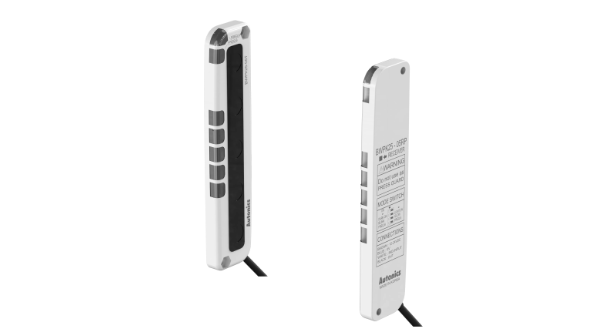

Through-beam type(direct beam) |
| Sensing distance |
Long distance mode: 0.1 to 3m
Short distance mode: 0.05 to 1m |
| Light source |
Infrared LED(850nm modulated) |
| Optical axis pitch |
25mm |
| Number of optical axes |
5 |
| Sensing height |
100mm |
| Power voltage |
12-24VDC  ±10%(ripple P-P: max. 10%) |
| Control output |
PNP open collector |
| Operation mode |
Light ON/Dark ON(set by switch) |
| Environment_Ambient illumination |
Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature |
-10 to 55℃, storage: -20 to 60℃ |
| Connection type |
Cable type(Ø4, 2m) |
| Protection structure |
IP40 |
| Environment_Ambient humidity |
35 to 85% RH, storage: 35 to 85% RH |
| Min. sensing target |
Opaque materials of min. Ø35mm |
| Response time |
Max. 30ms |
| Material |
Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate |
| Cable specification |
Ø4.0mm, 4-wire, 2m(emitter: Ø4.0mm, 3-wire, 2m)
(AWG 22, core diameter: 0.08mm, number of cores: 60, insulator out diameter: Ø1.25mm) |
| Weight |
Approx. 220g(approx. 180g) |
