Description

Sensing type	Retroreflective type(built-in polarizing filter)
Sensing distance	3m
Sensing target	Opaque material of min. Ø60mm
Light source	Red LED(660nm)
Response time	Max. 20ms
Power voltage	24-240VAC~ ±10% 50/60Hz, 24-240VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 3VA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	Relay
Timer function	Timer Function
Connection type	Terminal block type
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-20 to 55℃, storage: -25 to 70℃
Protection structure	IP66
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Individual	Reflector(MS-3)
Accessories_Common	Adjuster driver, Fixing bracket, Bolts, Nuts
Weight	Approx. 149g

Product form

Sensing type Retroreflective type(built-in polarizing filter) Sensing distance 3m Sensing target Opaque material of min. Ø60mm Light source Red LED(660nm)... Read more

SKU: BX3M-PFR-T

$55.54 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Sensing type	Retroreflective type(built-in polarizing filter)
Sensing distance	3m
Sensing target	Opaque material of min. Ø60mm
Light source	Red LED(660nm)
Response time	Max. 20ms
Power voltage	24-240VAC~ ±10% 50/60Hz, 24-240VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 3VA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	Relay
Timer function	Timer Function
Connection type	Terminal block type
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-20 to 55℃, storage: -25 to 70℃
Protection structure	IP66
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Individual	Reflector(MS-3)
Accessories_Common	Adjuster driver, Fixing bracket, Bolts, Nuts
Weight	Approx. 149g

Reviews

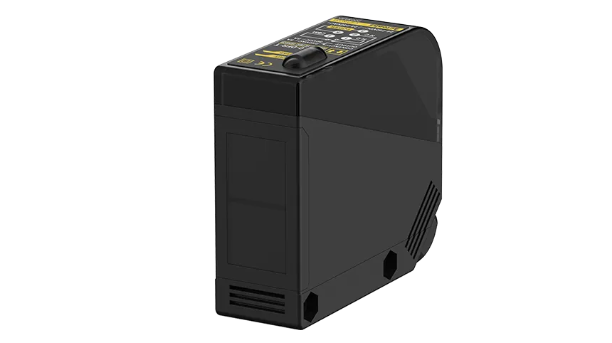

Name: Autonics Photoelectric Sensor, Photoelectric Type BX3M-PFR-T
