CITIZEN Signal Indicators TRI-METRON, 1S-010

  • VendorCITIZEN

Description

CITIZEN  Signal Indicators TRI-METRON,  1S-010

  • Smaller size :Because of the small size, the indicator can be installed in narrower space
  • Durability :Ball sliding adopted for the spindle action enhances the durability
  • Environment resistance :Resistance against dust and drips is improved. The signal indicator can be used reliably at sites of processing and assembling
  • The LP type incorporates NG/OK/+NG judgment lamps. You can check at a glance whether items pass or fail, even from a distance.
Specifications
Model 1S-010
Graduation 10µm
Range ±0.5mm
Accuracy ±5µm
Measuring force 0.98N
Spindle stroke 2.5mm
Contact rating DC 24 V 4 mA (resistance load)
Standard attachments Contact point *1 F-001
Back*2 Flat back (F-M103-1)
Cable 3SMA-0061-1.5(1.5m)
Rubber bellows M-131
Option Release M-140

_In 1S series, the contacts are insulated from the body.
_In 2S series, the contacts are connected to the body.
_All the measuring forces are those in a state where no rubber bellows is attached. (Each measuring force is about 0.05 to 0.1 N higher if a rubber bellow is attached.)
*1 Various other contact points are available.  *2 Various other backs are available.

Optional cable Length 3m 5m 10m (Make to order manufacturing)
Model 3SMA-0061-3 3SMA-0061-5 3SMA-0061-10

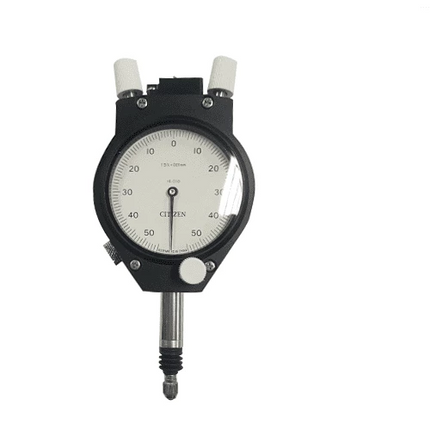

[CITIZEN] Signal Indicators TRI-METRON,  1S-010

Product form

CITIZEN  Signal Indicators TRI-METRON,  1S-010 Smaller size :Because of the small size, the indicator can be installed in narrower space... Read more

SKU: k114-0301

$777.37 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      CITIZEN  Signal Indicators TRI-METRON,  1S-010

      • Smaller size :Because of the small size, the indicator can be installed in narrower space
      • Durability :Ball sliding adopted for the spindle action enhances the durability
      • Environment resistance :Resistance against dust and drips is improved. The signal indicator can be used reliably at sites of processing and assembling
      • The LP type incorporates NG/OK/+NG judgment lamps. You can check at a glance whether items pass or fail, even from a distance.
      Specifications
      Model 1S-010
      Graduation 10µm
      Range ±0.5mm
      Accuracy ±5µm
      Measuring force 0.98N
      Spindle stroke 2.5mm
      Contact rating DC 24 V 4 mA (resistance load)
      Standard attachments Contact point *1 F-001
      Back*2 Flat back (F-M103-1)
      Cable 3SMA-0061-1.5(1.5m)
      Rubber bellows M-131
      Option Release M-140

      _In 1S series, the contacts are insulated from the body.
      _In 2S series, the contacts are connected to the body.
      _All the measuring forces are those in a state where no rubber bellows is attached. (Each measuring force is about 0.05 to 0.1 N higher if a rubber bellow is attached.)
      *1 Various other contact points are available.  *2 Various other backs are available.

      Optional cable Length 3m 5m 10m (Make to order manufacturing)
      Model 3SMA-0061-3 3SMA-0061-5 3SMA-0061-10



      [CITIZEN] Signal Indicators TRI-METRON,  1S-010
