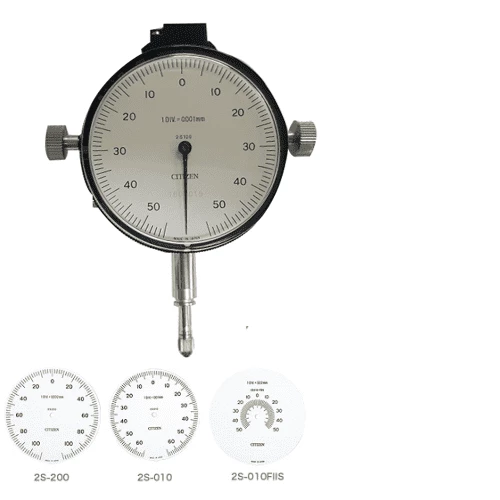

CITIZEN Signal Indicators TRI-METRON, 2S-010

  • VendorCITIZEN

Description

CITIZEN  Signal Indicators TRI-METRON,  2S-010

  • The dial is large, to allow easy reading
  • Low-priced
Specifications
Model 2S-010
Graduation 10µm
Range ±0.6mm
Accuracy ±5µm
Measuring force 1.18N
Spindle stroke 2.8mm
Contact rating DC 24 V 4 mA (resistance load)
Standard attachments Contact point *1 F-001
Back*2 Flat back (F-M101)
Cable 3SMA-0061-1.5(1.5m)
Rubber bellows *3
Option Release M-140

_In 1S series, the contacts are insulated from the body.
_In 2S series, the contacts are connected to the body.
_All the measuring forces are those in a state where no rubber bellows is attached. (Each measuring force is about 0.05 to 0.1 N higher if a rubber bellow is attached.)
*1 Various other contact points are available.
*2 Various other backs are available.
*3 In 2S series, the rubber bellows can be installed as an option.

Optional cable Length 3m 10m (Make to order manufacturing)
Model 3SMA-0061-3 3SMA-0061-10



[CITIZEN] Signal Indicators TRI-METRON, 2S-010

Product form

CITIZEN  Signal Indicators TRI-METRON,  2S-010 The dial is large, to allow easy reading Low-priced Specifications Model 2S-010 Graduation 10µm Range... Read more

SKU: k114-0304

$706.86 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    CITIZEN  Signal Indicators TRI-METRON,  2S-010

    • The dial is large, to allow easy reading
    • Low-priced
    Specifications
    Model 2S-010
    Graduation 10µm
    Range ±0.6mm
    Accuracy ±5µm
    Measuring force 1.18N
    Spindle stroke 2.8mm
    Contact rating DC 24 V 4 mA (resistance load)
    Standard attachments Contact point *1 F-001
    Back*2 Flat back (F-M101)
    Cable 3SMA-0061-1.5(1.5m)
    Rubber bellows *3
    Option Release M-140

    _In 1S series, the contacts are insulated from the body.
    _In 2S series, the contacts are connected to the body.
    _All the measuring forces are those in a state where no rubber bellows is attached. (Each measuring force is about 0.05 to 0.1 N higher if a rubber bellow is attached.)
    *1 Various other contact points are available.
    *2 Various other backs are available.
    *3 In 2S series, the rubber bellows can be installed as an option.

    Optional cable Length 3m 10m (Make to order manufacturing)
    Model 3SMA-0061-3 3SMA-0061-10



    [CITIZEN] Signal Indicators TRI-METRON, 2S-010
