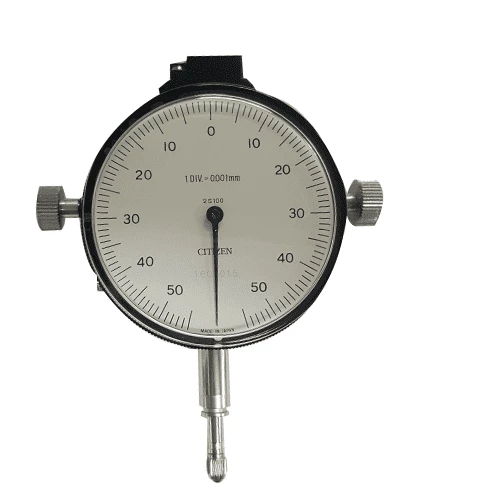

CITIZEN Signal Indicators TRI-METRON, 2S-100

  • VendorCITIZEN

Description

CITIZEN  Signal Indicators TRI-METRON, 2S-100

  • The dial is large, to allow easy reading
  • Low-priced
Specifications
Model 2S-100
Graduation 1µm
Range ±0.05mm
Accuracy ±1µm
Measuring force 1.18N
Spindle stroke 2.8mm
Contact rating DC 24 V 4 mA (resistance load)
Standard attachments Contact point *1 F-001
Back*2 Flat back (F-M101)
Cable 3SMA-0061-1.5(1.5m)
Rubber bellows *3
Option Release M-140

_In 1S series, the contacts are insulated from the body.
_In 2S series, the contacts are connected to the body.
_All the measuring forces are those in a state where no rubber bellows is attached. (Each measuring force is about 0.05 to 0.1 N higher if a rubber bellow is attached.)
*1 Various other contact points are available.
*2 Various other backs are available.
*3 In 2S series, the rubber bellows can be installed as an option.

Optional cable Length 3m 10m (Make to order manufacturing)
Model 3SMA-0061-3 3SMA-0061-10



[CITIZEN] Signal Indicators TRI-METRON,  2S-010

Product form

CITIZEN  Signal Indicators TRI-METRON, 2S-100 The dial is large, to allow easy reading Low-priced Specifications Model 2S-100 Graduation 1µm Range... Read more

SKU: k114-0307

$632.75 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      CITIZEN  Signal Indicators TRI-METRON, 2S-100

      • The dial is large, to allow easy reading
      • Low-priced
      Specifications
      Model 2S-100
      Graduation 1µm
      Range ±0.05mm
      Accuracy ±1µm
      Measuring force 1.18N
      Spindle stroke 2.8mm
      Contact rating DC 24 V 4 mA (resistance load)
      Standard attachments Contact point *1 F-001
      Back*2 Flat back (F-M101)
      Cable 3SMA-0061-1.5(1.5m)
      Rubber bellows *3
      Option Release M-140

      _In 1S series, the contacts are insulated from the body.
      _In 2S series, the contacts are connected to the body.
      _All the measuring forces are those in a state where no rubber bellows is attached. (Each measuring force is about 0.05 to 0.1 N higher if a rubber bellow is attached.)
      *1 Various other contact points are available.
      *2 Various other backs are available.
      *3 In 2S series, the rubber bellows can be installed as an option.

      Optional cable Length 3m 10m (Make to order manufacturing)
      Model 3SMA-0061-3 3SMA-0061-10



      [CITIZEN] Signal Indicators TRI-METRON,  2S-010
