Description

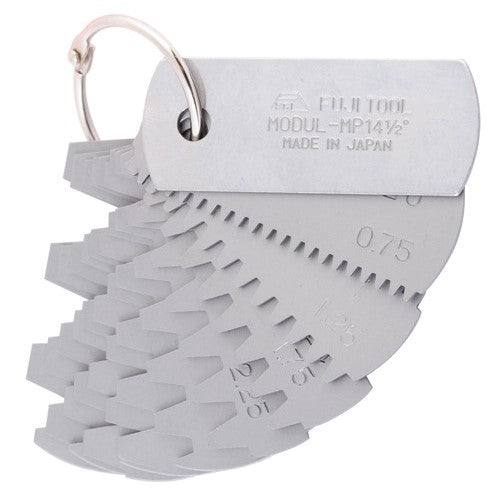

Fuji Gear Tooth Gauge
A leaf gauge is a set of known profiles you hold against the work: the one that matches with no light gap tells you the size. Nothing to zero, nothing to drift.
Available Sizes
- 6–80 TPI (14 1/2˚), 14 leaves (DP-S14)
- 6–18 TPI (20˚), 8 leaves (DP-S20)
- 0.5–5.0mm (14 1/2˚), 13 leaves (MP-S14)
- 0.5–5.0mm (20˚), 13 leaves (MP-S20)
Key Features
- Fixed references — no calibration to hold
- Leaves pivot from one holder and fold away
- Check for burrs before use; a bent leaf reads wrong
Specifications
| Set Quantity |
14 |
| Leaves in Set |
14 |
Specifications shown are for the base model; values vary by size. Contact us if you need the figures for a specific size.
About Fuji
FUJI TOOL CO., LTD. (フジツール) has made precision measuring tools and jigs in Matsudo, Chiba since 1933, and is best known for its radius gauges, screw pitch gauges and gear tooth gauges.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
