Description

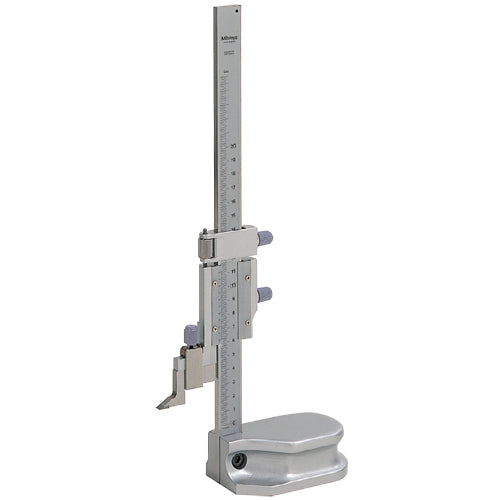

MITUTOYO Vernier Height Gauge
A height gauge measures and scribes vertical dimensions from a surface plate, and is the main layout instrument on an inspection bench.
Available Sizes
- 0–600mm, 0.02mm grad. (514-106)
- 0–300mm, 0.02mm grad. (514-102)
- 0–1000mm, 0.02mm grad. (514-108)
- 0–450mm, 0.02mm grad. (514-104)
- 0–200mm, 0.02mm grad. (506-207)
Key Features
- Measures from a surface plate datum for repeatable vertical dimensions
- Carbide-tipped scriber marks layout lines at a set height
- Accepts a test indicator for comparative and centre-finding work
Specifications
| Measuring Range |
0–600 mm |
| Graduation (mm) |
0.02 |
Specifications shown are for the base model; values vary by size. Contact us if you need the figures for a specific size.
About MITUTOYO
Mitutoyo Corporation, founded in Japan in 1934, is the world's largest maker of precision measuring instruments. Its calipers, micrometers and indicators are the reference standard on shop floors and in calibration labs worldwide.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
