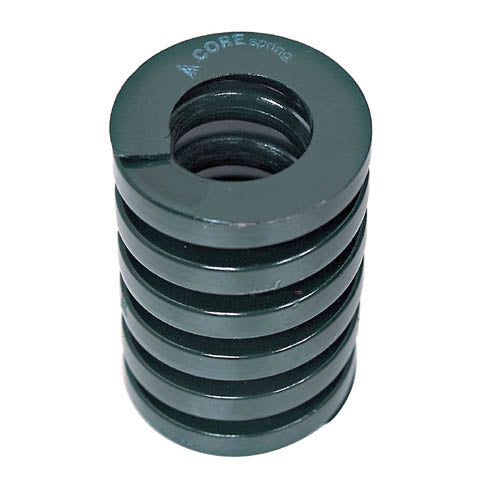

CORE C&T Die Spring, Heavy Load (Green) 25mm–30mm

  • VendorCORE C&T

Description

CORE C&T Die Spring, Heavy Load (Green) 25mm–30mm

A die spring is a rectangular-wire compression spring built for the stroke counts and loads a press tool sees. Load class is carried by the colour, so a spring can be identified in the die without measuring it.

Available Sizes

  • CH25-25(Green)
  • CH25-30(Green)
  • CH25-35(Green)
  • CH25-40(Green)
  • CH25-45(Green)
  • CH25-50(Green)
  • CH25-55(Green)
  • CH25-60(Green)
  • CH25-65(Green)
  • CH25-70(Green)
  • CH25-75(Green)
  • CH25-80(Green)
  • CH25-90(Green)
  • CH25-100(Green)
  • CH25-125(Green)
  • CH25-150(Green)
  • CH27-25(Green)
  • CH27-30(Green)
  • CH27-35(Green)
  • CH27-40(Green)
  • CH27-45(Green)
  • CH27-50(Green)
  • CH27-55(Green)
  • CH27-60(Green)
  • CH27-65(Green)
  • CH27-70(Green)
  • CH27-75(Green)
  • CH27-80(Green)
  • CH27-90(Green)
  • CH27-100(Green)
  • CH27-125(Green)
  • CH27-150(Green)
  • CH30-25(Green)
  • CH30-30(Green)
  • CH30-35(Green)
  • CH30-40(Green)
  • CH30-45(Green)
  • CH30-50(Green)
  • CH30-55(Green)
  • CH30-60(Green)
  • and 6 more

Key Features

  • Rectangular wire — more load in the same hole than round wire
  • Colour marks the load class: yellow < blue < red < green < brown
  • Sized by outside diameter and free length

Specifications

Size 25
Overall Length (mm) 25

Specifications shown are for the base model; values vary by size. Contact us if you need the figures for a specific size.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

CORE C&T Die Spring, Heavy Load (Green) 25mm–30mmA die spring is a rectangular-wire compression spring built for the stroke counts... Read more

SKU: 365-7818

$2.90 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
