Description

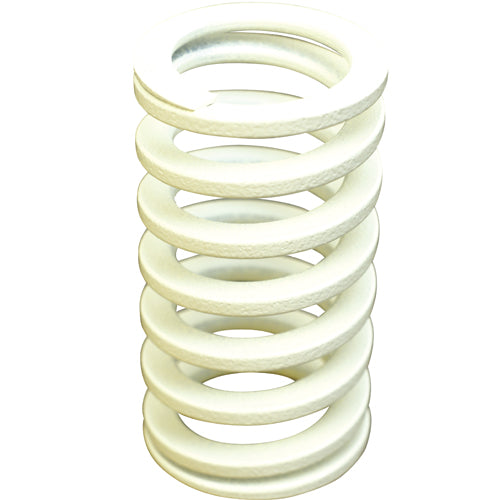

CORE C&T Die Spring, High-Deflection (White) 21mm–32mm
A die spring is a rectangular-wire compression spring built for the stroke counts and loads a press tool sees. Load class is carried by the colour, so a spring can be identified in the die without measuring it.
Available Sizes
- CR26-55(White)
- CR21-125(White)
- CR32-50(White)
- CR32-60(White)
- CR26-50(White)
- CR26-60(White)
- CR21-150(White)
- CR26-30(White)
- CR26-35(White)
- CR26-40(White)
- CR26-45(White)
- CR26-65(White)
- CR26-70(White)
- CR26-75(White)
- CR26-80(White)
- CR26-90(White)
- CR26-100(White)
- CR26-125(White)
- CR26-150(White)
- CR32-40(White)
- CR32-45(White)
- CR32-55(White)
- CR32-65(White)
Key Features
- Rectangular wire — more load in the same hole than round wire
- Colour marks the load class: yellow < blue < red < green < brown
- Sized by outside diameter and free length
Specifications
| Size |
26 |
| Overall Length (mm) |
55 |
Specifications shown are for the base model; values vary by size. Contact us if you need the figures for a specific size.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
