Description

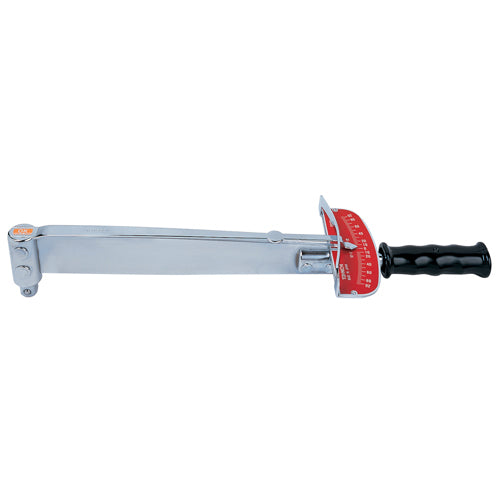

TOHNICHI F Beam Type Torque Wrench 3–190 N·m 3/8" drive
A beam wrench reads torque from the deflection of the beam against a fixed pointer. Nothing inside it can go out of adjustment, which is why it stays a reference tool.
Available Sizes
- 3–23 N·m, 3/8" drive (F23N)
- 5–46 N·m, 3/8" drive (F46N)
- 10–92 N·m, 1/2" drive (F92N)
- 20–130 N·m, 1/2" drive (F130N)
- 30–190 N·m, 1/2" drive (F190N)
Key Features
- No internal mechanism to drift out of calibration
- Reads in both directions
- Needs a clear line of sight to the scale while pulling
Specifications
| Overall Length (mm) |
295 |
| Torque Range |
3–23 N·m |
| Square Drive |
3/8" drive |
| Graduation |
0.5 N·m |
Specifications shown are for the base model; values vary by size. Contact us if you need the figures for a specific size.
About TOHNICHI
Founded in Japan in 1949, Tohnichi Manufacturing Co., Ltd. builds nothing but torque tools — manual and powered torque devices, mechanical and electronic torque measuring equipment, and the software that records what they read. Its interchangeable-head system lets one calibrated wrench body cover open-end, ring, hex and hook work.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
