Description

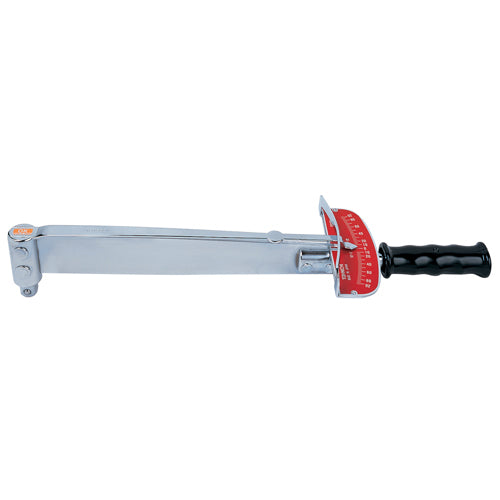

TOHNICHI F Beam Type Torque Wrench 30–1900 kgf·cm 3/8" drive
A beam wrench reads torque from the deflection of the beam against a fixed pointer. Nothing inside it can go out of adjustment, which is why it stays a reference tool.
Available Sizes
- 30–230 kgf·cm (22.6 N·m max), 3/8" drive (230F)
- 50–460 kgf·cm (45.1 N·m max), 3/8" drive (460F)
- 100–920 kgf·cm (90.2 N·m max), 1/2" drive (920F)
- 200–1300 kgf·cm (127 N·m max), 1/2" drive (1300F)
- 300–1900 kgf·cm (186 N·m max), 1/2" drive (1900F)
Key Features
- No internal mechanism to drift out of calibration
- Reads in both directions
- Needs a clear line of sight to the scale while pulling
Specifications
| Overall Length (mm) |
295 |
| Torque Range |
30–230 kgf·cm (22.6 N·m max) |
| Square Drive |
3/8" drive |
| Graduation |
5 kgf·cm |
Specifications shown are for the base model; values vary by size. Contact us if you need the figures for a specific size.
About TOHNICHI
Founded in Japan in 1949, Tohnichi Manufacturing Co., Ltd. builds nothing but torque tools — manual and powered torque devices, mechanical and electronic torque measuring equipment, and the software that records what they read. Its interchangeable-head system lets one calibrated wrench body cover open-end, ring, hex and hook work.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
