Description

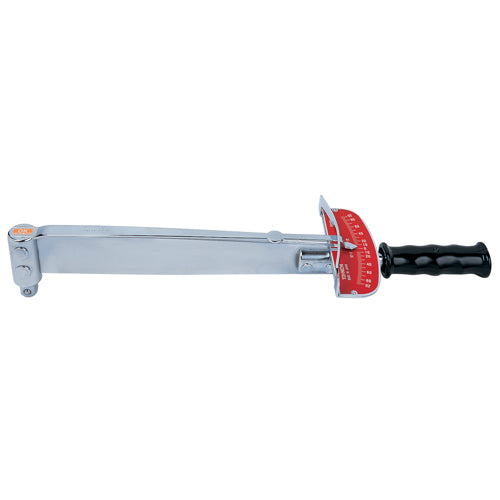

TOHNICHI F Beam Type Torque Wrench 5–100 kgf·m 3/4" drive
A beam wrench reads torque from the deflection of the beam against a fixed pointer. Nothing inside it can go out of adjustment, which is why it stays a reference tool.
Available Sizes
- 5–28 kgf·m (275 N·m max), 3/4" drive (2800F)
- 7–42 kgf·m (412 N·m max), 3/4" drive (4200F)
- 10–56 kgf·m (549 N·m max), 3/4" drive (5600F)
- 10–70 kgf·m (686 N·m max), 3/4" drive (7000F)
- 10–85 kgf·m (834 N·m max), 25.4 mm drive (8500F)
- 10–100 kgf·m (981 N·m max), 25.4 mm drive (10000F)
Key Features
- No internal mechanism to drift out of calibration
- Reads in both directions
- Needs a clear line of sight to the scale while pulling
Specifications
| Overall Length (mm) |
565 |
| Torque Range |
5–28 kgf·m (275 N·m max) |
| Square Drive |
3/4" drive |
| Graduation |
0.5 kgf·m |
Specifications shown are for the base model; values vary by size. Contact us if you need the figures for a specific size.
About TOHNICHI
Founded in Japan in 1949, Tohnichi Manufacturing Co., Ltd. builds nothing but torque tools — manual and powered torque devices, mechanical and electronic torque measuring equipment, and the software that records what they read. Its interchangeable-head system lets one calibrated wrench body cover open-end, ring, hex and hook work.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
