JUNGWOO Granite Surface Plate, Inspection Certified 300×300–2000×1500 mm

  • VendorJUNGWOO

Description

Granite plate — freight only (2250 kg for the largest size). Surface plates are solid granite and run from tens to thousands of kilograms, well past what any parcel carrier will accept, so online checkout is disabled for them. They also need corner protection and a crate to arrive flat. Message us with your destination and the size you need and we will quote sea freight including crating and, where required, delivery to a commercial address with unloading equipment.

JUNGWOO Granite Surface Plate, Inspection Certified 300×300–2000×1500 mm

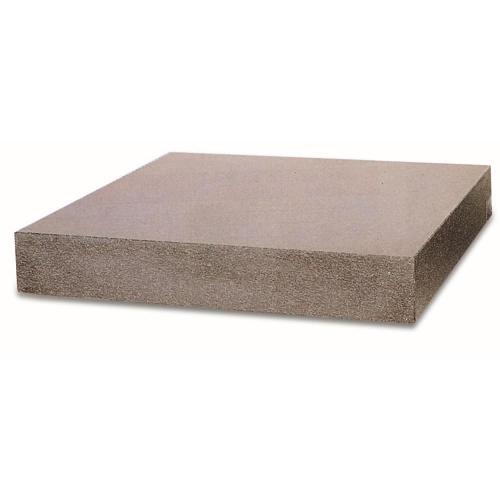

A granite surface plate is the flat reference everything else in the inspection room is measured against. Granite is chosen over cast iron because it does not rust, does not burr when knocked, and holds its flatness without stress relieving.

Available Sizes

  • 300 × 300 × 80 mm, 3 µm flatness, 22 kg
  • 450 × 300 × 100 mm, 3 µm flatness, 41 kg
  • 500 × 500 × 100 mm, 4 µm flatness, 75 kg
  • 600 × 450 × 100 mm, 4 µm flatness, 81 kg
  • 600 × 600 × 120 mm, 5 µm flatness, 130 kg
  • 750 × 500 × 130 mm, 5 µm flatness, 135 kg
  • 900 × 600 × 130 mm, 5 µm flatness, 211 kg
  • 1000 × 750 × 150 mm, 7 µm flatness, 338 kg
  • 1000 × 1000 × 150 mm, 8 µm flatness, 450 kg
  • 1200 × 900 × 150 mm, 8 µm flatness, 486 kg
  • 1500 × 1000 × 200 mm, 9 µm flatness, 900 kg
  • 2000 × 1500 × 250 mm, 12 µm flatness, 2250 kg
  • 2000 × 1000 × 200 mm, 12 µm flatness, 1200 kg

Key Features

  • Flatness is quoted in micrometres over the whole face — the smaller the number, the finer the grade
  • Lapped granite wears rather than raising a burr, so a knock does not lift a high spot
  • Needs a stand or three-point support; setting one on a flat bench distorts the face

Specifications

Flatness 3 µm
Unit Weight 22 kg
Dimensions 300 × 300 × 80 mm

Specifications shown are for the base model; values vary by size. Contact us if you need the figures for a specific size.

About JUNGWOO

JUNGWOO manufactures granite surface plates, plate stands and granite indicator stands for Korean inspection rooms and machine shops. Plates are supplied either self-inspected or with a third-party inspection certificate.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
