Description
SOKKIA Automatic Level 24–32×
An automatic level self-levels its line of sight with a compensator, so once the tripod is roughly level the instrument does the rest. It is the standard way a site transfers a height over distance.
Available Sizes

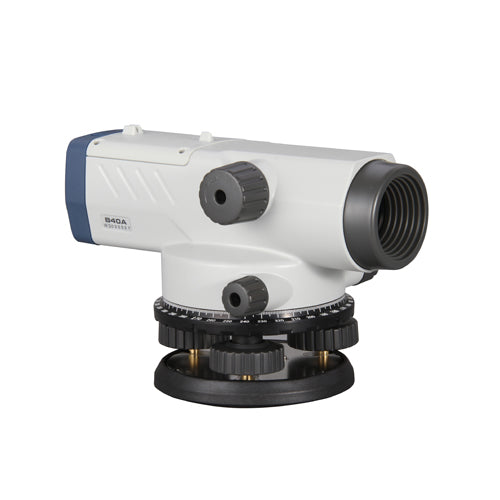

- ±2.0 mm per 1 km double run, 24× magnification (B40A)

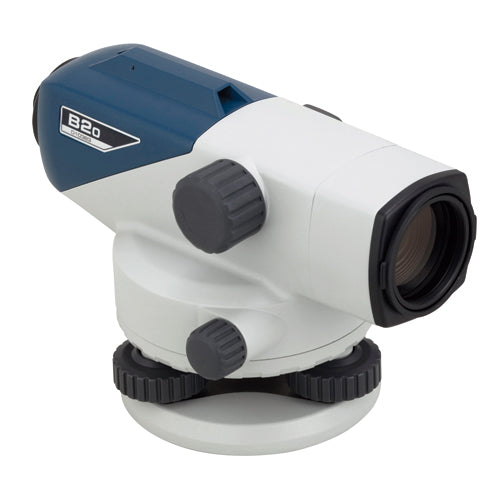

- ±0.7 mm per 1 km double run, 32× magnification (B20)

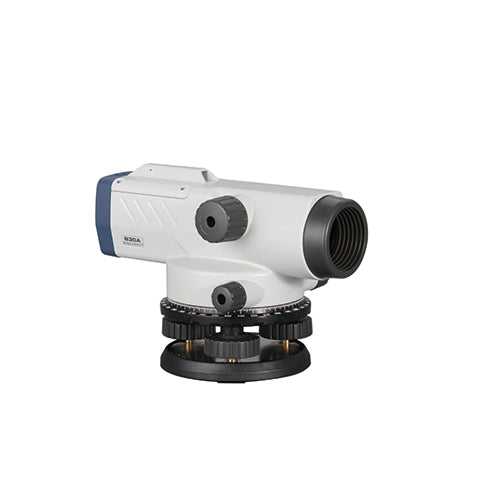

- ±1.5 mm per 1 km double run, 28× magnification (B30A)
Key Features
- Compensator holds the line of sight level without fine adjustment
- Accuracy is quoted as standard deviation over a 1 km double run — the lower the better
- Higher magnification reads the staff further away, which is what decides the setup count
- Supplied in a carrying case; a tripod and staff are bought separately
Specifications
| Accuracy |
±2.0 mm per 1 km double run |
| Magnification |
24× |
Specifications shown are for the base model; values vary by size. Contact us if you need the figures for a specific size.
About SOKKIA
SOKKIA has made surveying instruments since 1920 and is now part of the Topcon positioning group. Its B-series levels and DT theodolites remain a separate line with their own following.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
