Made to order — please enquire before ordering. This model is built to the specification given at order time. Message us with what you need and we will confirm the configuration and lead time.
TOHNICHI CLLS Adjustable Torque Wrench with Limit Switch 4–4200 kgf·cm 8D Head
A limit-switch wrench closes an electrical contact at the set torque, so an assembly line counter can confirm that every fastener was actually tightened.
Available Sizes
- 30–150 kgf·cm (14.7 N·m max), 8D head mount (150CLMS)

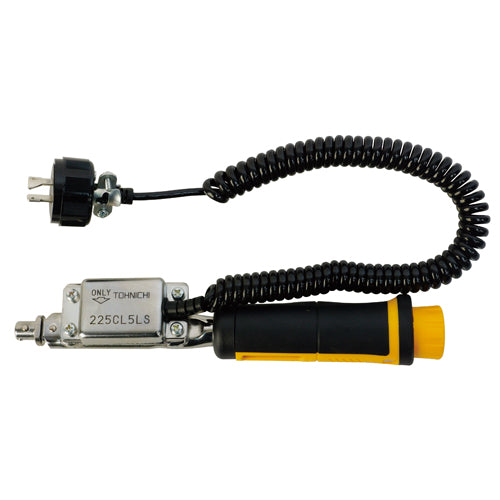

- 50–250 kgf·cm (24.5 N·m max), 10D head mount (225CL5LS)
- 4–20 kgf·cm (1.96 N·m max), 8D head mount (20CLMS-MH)
- 10–50 kgf·cm (4.9 N·m max), 8D head mount (50CLMS-MH)
- 20–100 kgf·cm (9.81 N·m max), 8D head mount (100CLMS-MH)
- 30–150 kgf·cm (14.7 N·m max), 8D head mount (150CLMS-MH)
- 20–100 kgf·cm (9.81 N·m max), 8D head mount (100CLMS)
- 100–500 kgf·cm (49 N·m max), 12D head mount (450CL3LS)
- 100–500 kgf·cm (49 N·m max), 15D head mount (500CL3LS)
- 200–1000 kgf·cm (98.1 N·m max), 15D head mount (900CL3LS)
- 300–1400 kgf·cm (137 N·m max), 15D head mount (1400CL3LS)
- 400–2000 kgf·cm (196 N·m max), 19D head mount (1800CL3LS)
- 400–2800 kgf·cm (275 N·m max), 22D head mount (2800CL3LS)
- 600–4200 kgf·cm (412 N·m max), 22D head mount (4200CL2LS)
Key Features
- Signal output at the set torque for counters and error-proofing systems
- Used where a missed fastener has to be detected, not just avoided
- Requires a matching counter unit and cable
Specifications
| Overall Length (mm) |
199 |
| Torque Range |
30–150 kgf·cm (14.7 N·m max) |
| Graduation |
1 kgf·cm |
| Head Mount Size |
8D |
Specifications shown are for the base model; values vary by size. Contact us if you need the figures for a specific size.
About TOHNICHI
Founded in Japan in 1949, Tohnichi Manufacturing Co., Ltd. builds nothing but torque tools — manual and powered torque devices, mechanical and electronic torque measuring equipment, and the software that records what they read. Its interchangeable-head system lets one calibrated wrench body cover open-end, ring, hex and hook work.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
