Description

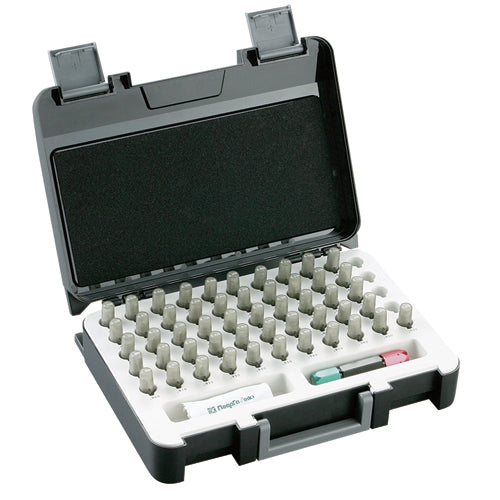

Niigata Seiki Pin Gauge Set
A pin gauge set measures a hole by fit: the largest pin that enters is the size. Steps of 0.01 mm give a direct answer where a bore gauge needs setting up first.
Available Sizes
- 1.00 – 1.50 mm, 0.01 mm steps (AA-1A)
- 1.50 – 2.00 mm, 0.01 mm steps (AA-1B)
- 2.00 – 2.50 mm, 0.01 mm steps (AA-2A)
- 2.50 – 3.00 mm, 0.01 mm steps (AA-2B)
- 3.00 – 3.50 mm, 0.01 mm steps (AA-3A)
- 3.50 – 4.00 mm, 0.01 mm steps (AA-3B)
- 4.00 – 4.50 mm, 0.01 mm steps (AA-4A)
- 4.50 – 5.00 mm, 0.01 mm steps (AA-4B)
- 5.00 – 5.50 mm, 0.01 mm steps (AA-5A)
- 5.50 – 6.00 mm, 0.01 mm steps (AA-5B)
Key Features
- Reads a hole directly by go/no-go fit, in 0.01 mm steps
- Also used to set bore gauges and to check hole position
- Handle by the shank — body heat changes the reading on a lapped pin
Specifications
| Size |
1.00 ~ 1.50 |
| Step (mm) |
0.01 |
Specifications shown are for the base model; values vary by size. Contact us if you need the figures for a specific size.
About Niigata Seiki
Niigata Seiki Co., Ltd., whose tools carry the SK mark, manufactures precision measuring instruments in Niigata, Japan — taper and pin gauges, welding gauges, calipers, protractors and levels.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
