Description

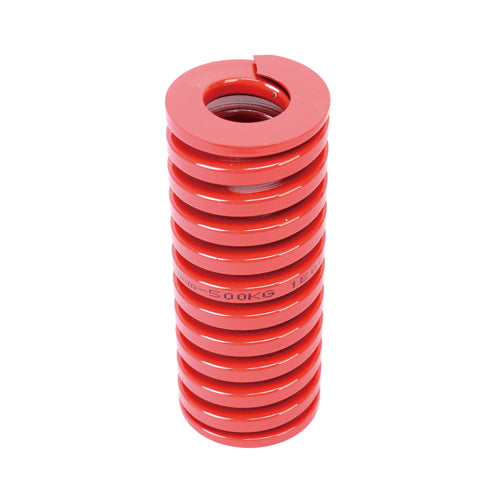

SHINHEUNG Die Spring, Medium Load (Red) 22mm–27mm
A die spring is a rectangular-wire compression spring built for the stroke counts and loads a press tool sees. Load class is carried by the colour, so a spring can be identified in the die without measuring it.
Available Sizes
- AM22-25(Red)
- AM22-30(Red)
- AM22-35(Red)
- AM22-40(Red)
- AM22-45(Red)
- AM22-50(Red)
- AM22-55(Red)
- AM22-60(Red)
- AM22-65(Red)
- AM22-70(Red)
- AM22-75(Red)
- AM22-80(Red)
- AM22-90(Red)
- AM22-100(Red)
- AM22-125(Red)
- AM25-25(Red)
- AM25-30(Red)
- AM25-35(Red)
- AM25-40(Red)
- AM25-45(Red)
- AM25-50(Red)
- AM25-55(Red)
- AM25-60(Red)
- AM25-65(Red)
- AM25-70(Red)
- AM25-75(Red)
- AM25-80(Red)
- AM25-90(Red)
- AM25-100(Red)
- AM25-125(Red)
- AM25-150(Red)
- AM27-25(Red)
- AM27-30(Red)
- AM27-35(Red)
- AM27-40(Red)
- AM27-45(Red)
- AM27-50(Red)
- AM27-55(Red)
- AM27-60(Red)
- AM27-65(Red)
- and 7 more
Key Features
- Rectangular wire — more load in the same hole than round wire
- Colour marks the load class: yellow < blue < red < green < brown
- Sized by outside diameter and free length
Specifications
Specifications shown are for the base model; values vary by size. Contact us if you need the figures for a specific size.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
