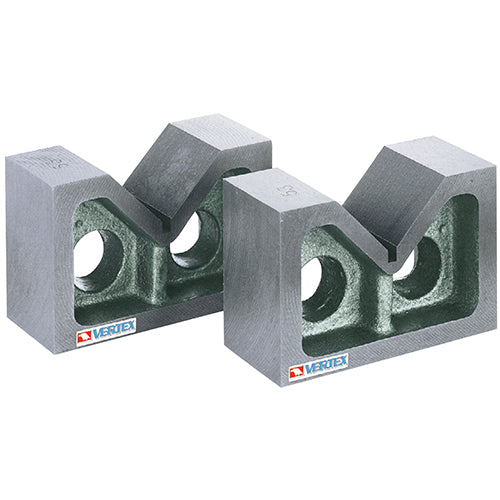

VERTEX Cast Iron V-Block, Type B

  • VendorVERTEX

Description

VERTEX Cast Iron V-Block, Type B

A V-block cradles round stock on two ground faces so the axis sits at a known height and cannot roll. Used in pairs, it is how a shaft gets held for marking out, drilling or run-out checks.

Available Sizes

  • 76 × 35 × 61 mm, accuracy 50 µm (V-3V)
  • 100 × 45 × 67 mm, accuracy 50 µm (V-4V)
  • 130 × 51.5 × 79.5 mm, accuracy 50 µm (V-5V)
  • 156 × 66 × 90.5 mm, accuracy 50 µm (V-6V)

Key Features

  • Sold and used in matched pairs for long work
  • Ground V and base square to each other for inspection use
  • Cast iron stays stable — it will not move as it ages

Specifications

Accuracy 50
Stock Length (mm) 44
Height (mm) 61
Width (mm) 35

Specifications shown are for the base model; values vary by size. Contact us if you need the figures for a specific size.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

VERTEX Cast Iron V-Block, Type BA V-block cradles round stock on two ground faces so the axis sits at a... Read more

SKU: 540-3196

$53.50 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
