BLUETEC Pin Gauge Set

  • VendorBLUETEC

Description

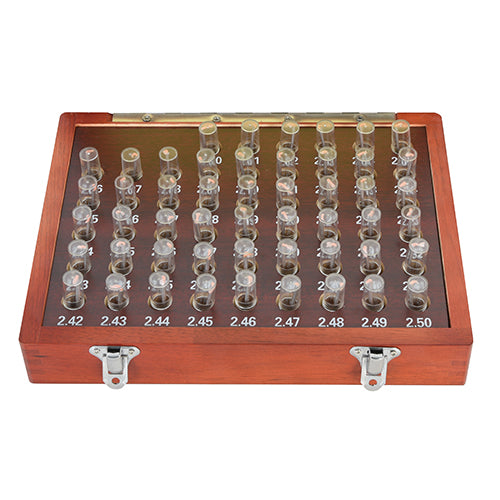

BLUETEC Pin Gauge Set

A pin gauge set measures a hole by fit: the largest pin that enters is the size. Steps of 0.01 mm give a direct answer where a bore gauge needs setting up first.

Available Sizes

  • 1.0–1.5 mm, 0.01 mm steps (BD-1A)
  • 1.5–2.0 mm, 0.01 mm steps (BD-1B)
  • 2.0–2.5 mm, 0.01 mm steps (BD-2A)
  • 2.5–3.0 mm, 0.01 mm steps (BD-2B)
  • 3.0–3.5 mm, 0.01 mm steps (BD-3A)
  • 3.5–4.0 mm, 0.01 mm steps (BD-3B)
  • 4.0–4.5 mm, 0.01 mm steps (BD-4A)
  • 4.5–5.0 mm, 0.01 mm steps (BD-4B)
  • 5.0–5.5 mm, 0.01 mm steps (BD-5A)
  • 5.5–6.0 mm, 0.01 mm steps (BD-5B)

Key Features

  • Reads a hole directly by go/no-go fit, in 0.01 mm steps
  • Also used to set bore gauges and to check hole position
  • Handle by the shank — body heat changes the reading on a lapped pin

Specifications

Size 1.0~1.5
Step (mm) 0.01

Specifications shown are for the base model; values vary by size. Contact us if you need the figures for a specific size.

About BLUETEC

Bluetec is a Korean manufacturer of solid carbide end mills and of BD-series precision measuring instruments — calipers, micrometers, indicators and height gauges.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

BLUETEC Pin Gauge SetA pin gauge set measures a hole by fit: the largest pin that enters is the size.... Read more

SKU: 401-4560

$171.20 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
