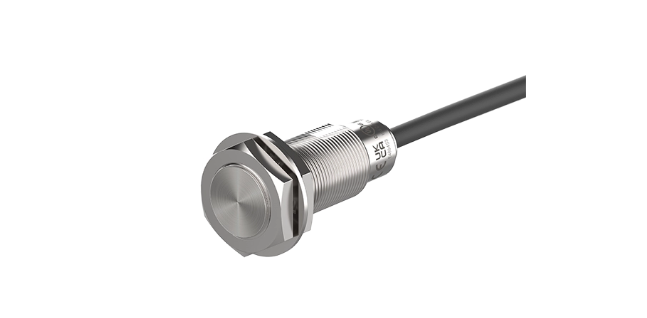

| Installation |
Flush |
| Sensing side diameter |
Ø18mm |
| Sensing distance |
5mm |
| Hysteresis(distance) |
Max. 15% of sensing distance |
| Standard sensing target |
30×30×1mm(iron) |
| Response frequency |
80Hz |
| Indicator |
Operation indicator (red LED) |
| Unit weight (packaged weight) |
≈ 97 g (≈ 132 g) |
| Power voltage |
12 - 24 VDC (ripple P-P: ≤ 10 %), operating voltage: 10 - 30 VDC
|
| Current specification |
Leakage current: Max. 0.8mA |
| Control output |
3 to 100 mA |
| Residual voltage |
Max. 3.5V |
| Protection circuit |
Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit |
| Insulation resistance |
≥ 50 MΩ (500 VDC megger) |
| Dielectric strength |
Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration |
1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
| Shock |
1,000 m/s² (≈ 100 G) in each X, Y, Z direction for 10 times |
| Environment_Ambient temperature |
-25 to 70 ℃, storage: -25 to 70 ℃ (no freezing or condensation) |
| Environment_Ambient humidity |
35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) |
| Protection structure |
IP67(IEC standard) |
| Connection |
Cable type |
| Cable Standard/material |
Oil resistant cable (gray): polyvinyl chloride (oil resistant PVC) |
| Material |
Case / Nut: stainless steel 303 (SUS303), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303) |
