Description

Wire type and power	DC 2-wire type 12-24VDC
Sensing side size	Frame size 17mm
Sensing distance	5mm
Standard sensing target	18×18×1mm(iron)
Response frequency	700Hz
Current specification	Leakage current: Max. 0.6mA
Control output	Normally Closed
Sensing type	Standard type(front sensing type)
Material	Polybutylene terephthalate
Protection structure	IP67
Environment_Ambient temperature	-25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)	Max. 10% of sensing distance
Weight	≈ 58g (≈ 79g)

Product form

Wire type and power DC 2-wire type 12-24VDC Sensing side size Frame size 17mm Sensing distance 5mm Standard sensing target... Read more

SKU: PSNT17-5DC

$9.94 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Wire type and power	DC 2-wire type 12-24VDC
Sensing side size	Frame size 17mm
Sensing distance	5mm
Standard sensing target	18×18×1mm(iron)
Response frequency	700Hz
Current specification	Leakage current: Max. 0.6mA
Control output	Normally Closed
Sensing type	Standard type(front sensing type)
Material	Polybutylene terephthalate
Protection structure	IP67
Environment_Ambient temperature	-25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)	Max. 10% of sensing distance
Weight	≈ 58g (≈ 79g)

Reviews

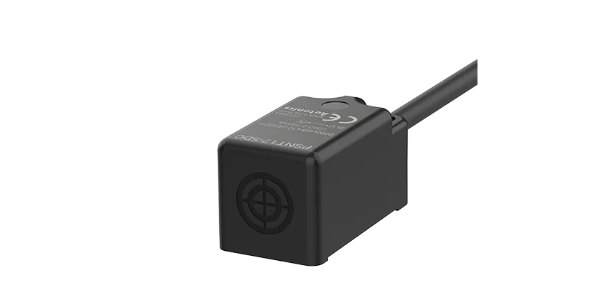

Name: Autonics Proximity Sensor Square Type Proximity Sensor DC 2-Wire PSNT17-5DC
Brand: Autonics
SKU: PSNT17-5DC
Price: 9.94 USD
Availability: InStock

Autonics Proximity Sensor Square Type Proximity Sensor DC 2-Wire PSNT17-5DC
