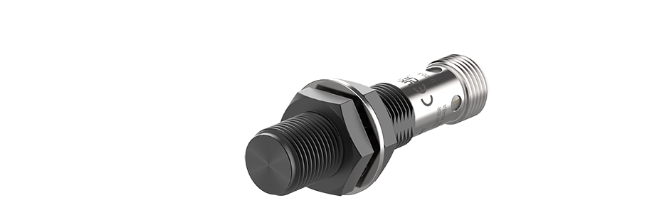

| Installation |
Flush |
| Sensing side diameter |
Ø12mm |
| Sensing distance |
3mm |
| Hysteresis(distance) |
Max. 15% of sensing distance |
| Standard sensing target |
12×12×1mm(iron) |
| Response frequency |
80Hz |
| Indicator |
Operation indicator (orange), stable indicator (green), Abnormal detect indicator (cross-flashing green, orange) |
| Unit weight (packaged weight) |
≈ 15 g (≈ 40 g) |
| Power voltage |
10 - 30 VDC (ripple P-P: ≤ 10 %) |
| Current specification |
Current consumption: Max. 20mA |
| Control output |
Max. 100mA |
| Residual voltage |
≤ 2.5 V |
| Protection circuit |
Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit |
| Insulation resistance |
≥ 50 MΩ (500 VDC megger) |
| Dielectric strength |
1,000 VAC~ 50 / 60 Hz for 1 minute (between all terminals and case) |
| Vibration |
1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
| Shock |
1,000 m/s² (≈ 100 G) in each X, Y, Z direction for 10 times |
| Environment_Ambient temperature |
-25 to 70 ℃, storage: -25 to 70 ℃ (no freezing or condensation) |
| Environment_Ambient humidity |
35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) |
| Protection structure |
IP66, IP67 (IEC standard), IP67G (JEM standard), IP68 |
| Connection |
Connector models |
| Connector type |
M12 plug connector |
| Material |
Case / Nut: stainless steel 303 (SUS303, PTFE coated), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303, PTFE coated) |
