Description

Sensing type	Retroreflective type(standard type)
Sensing distance	5m(MS-2)
Sensing target	Opaque material of min. Ø60mm
Light source	Infrared LED(850nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 50mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	NPN, PNP open collector simultaneous output
Timer function	Timer Function
Connection type	Terminal block type
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-20 to 55℃, storage: -25 to 70℃
Protection structure	IP65
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Individual	Reflector(MS-2)
Accessories_Common	Adjuster driver, Fixing bracket, Bolts, Nuts
Weight	Approx. 124g

Product form

Sensing type Retroreflective type(standard type) Sensing distance 5m(MS-2) Sensing target Opaque material of min. Ø60mm Light source Infrared LED(850nm) Response... Read more

SKU: BX5M-MDT-T

$40.11 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Sensing type	Retroreflective type(standard type)
Sensing distance	5m(MS-2)
Sensing target	Opaque material of min. Ø60mm
Light source	Infrared LED(850nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 50mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	NPN, PNP open collector simultaneous output
Timer function	Timer Function
Connection type	Terminal block type
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-20 to 55℃, storage: -25 to 70℃
Protection structure	IP65
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Individual	Reflector(MS-2)
Accessories_Common	Adjuster driver, Fixing bracket, Bolts, Nuts
Weight	Approx. 124g

Reviews

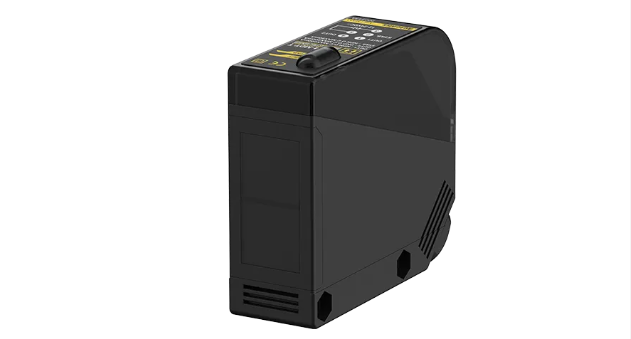

Name: Autonics Photoelectric Sensor, Photoelectric Type BX5M-MDT-T
Brand: Autonics
SKU: BX5M-MDT-T
Price: 40.11 USD
Availability: InStock

Autonics Photoelectric Sensor, Photoelectric Type BX5M-MDT-T
