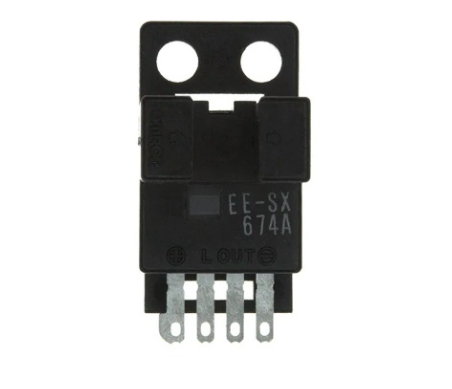

| Type |
Grooved Type (Close-mounting) |
| Luminous method |
Non-modulated |
| Sensing method |
Through-beam type |
| Sensing distance |
Slot width: 5 mm |
| Operation mode |
Dark-ON/Light-ON (selectable) |
| Standard sensing object |
Opaque, 2 x 0.8 mm min. |
| Differential distance elements |
0.025 mm max. |
| Light source （Peak wavelength） |
Infrared LED (940 nm) |
| Indicator |
No incident light (red) |
| Power supply voltage |
5 to 24 VDC ±10%
ripple (p-p) 10 % max. |
| Current consumption |
12 mA (L terminal open) |
| Control output |
Output type |
NPN open collector output |
| Load power supply voltage |
5 to 24 VDC |
| Load curren |
100 mA max. |
| Residual voltage |
at 100 mA load current: 0.8 V max.
at 40 mA load current: 0.4 V max. |
| Protection circuits |
Output short-cut protection |
| Response frequency elements |
1 kHz min.
Average value: 3 kHz |
| Illumination on the surface receiver |
Fluorescent light: 1000 lx max. |
| Ambient temperature |
Operating: -25 to 55 ℃ (with no freezing or condensation)
Storage: -30 to 80 ℃ (with no freezing or condensation) |
| Ambient humidity |
Operating: 5 to 85 % (with no condensation)
Storage: 5 to 95 % (with no condensation) |
| Vibration resistance |
Destruction: 20 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) |
| Shock resistance |
Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions |
| Degree of protection |
IP50 |
| Connection method |
Connector type (Direct soldering possible) |
| Weight |
Package: Approx. 3 g |
| Material |
Case: Polybutylene terephthalate (PBT)
Emitter/Receiver Cover: Polycarbonate (PC) |
