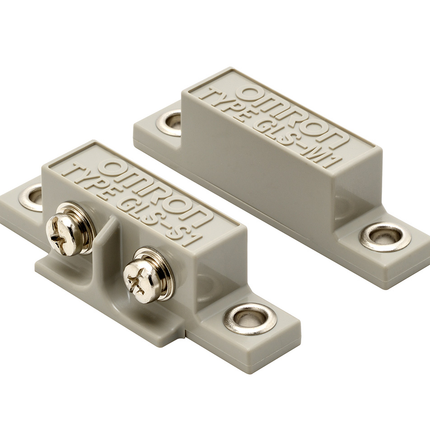

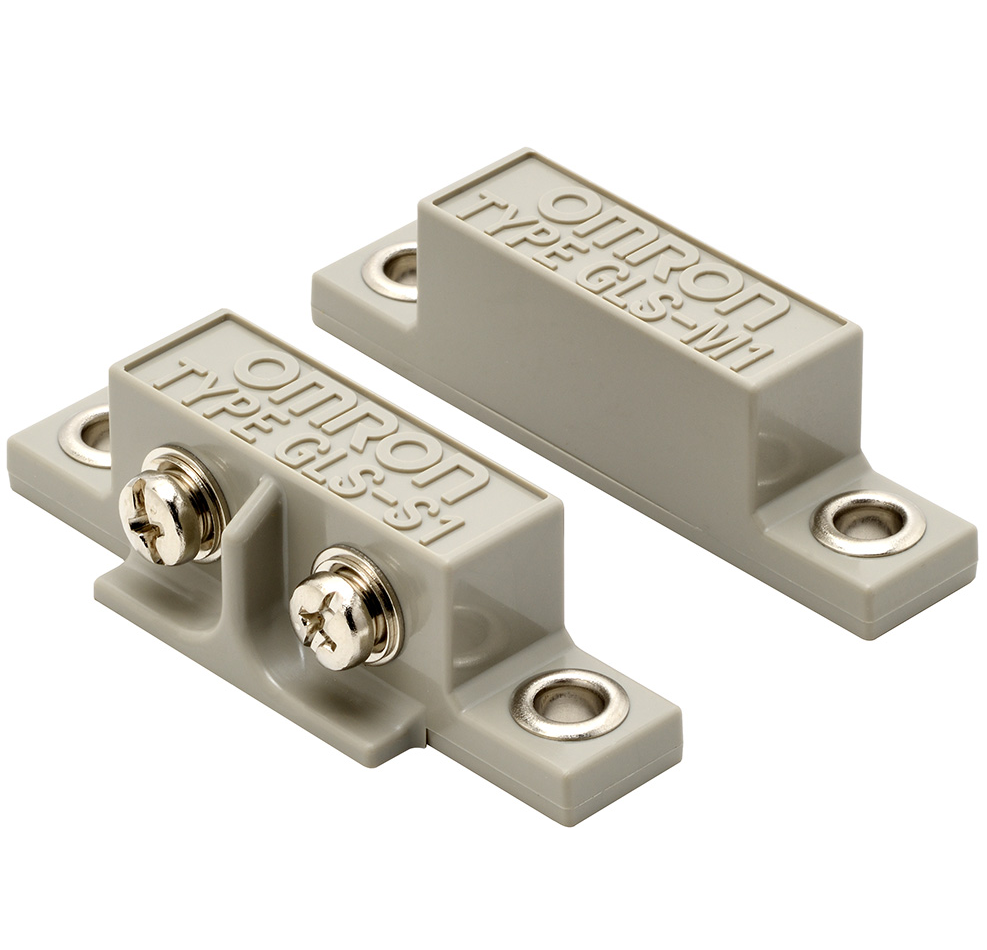

Omron Proximity Sensor Proximity Sensor GLS-1

Description

Magnetic Proximity Sensor, Terminal block model

Sensing head size 50 mm x 14 mm x 14 mm
Type Square type, Magnetic type
Sensing distance 15 mm



Sensing head size 50 mm x 14 mm x 14 mm
Type Square type, Magnetic type
Sensing distance 15 mm
Response frequency 20 Hz max.
Ambient temperature (Operating) -20 to 60 ℃
Ambient temperature (Storage) -20 to 60 ℃
Ambient humidity (Operating) 35 to 85 %
Ambient humidity (Storage) 35 to 85 %
Dielectric strength Between each terminals and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 300 m/s2 3 times each in X, Y and Z directions
Degree of protection IEC: IP40
Connection method Terminal block models
Material Sensor: ABS
Magnet: ABS
Product form

Magnetic Proximity Sensor, Terminal block model Sensing head size 50 mm x 14 mm x 14 mm Type Square type,... Read more

SKU: GLS-1

$12.16 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    Magnetic Proximity Sensor, Terminal block model

    Sensing head size 50 mm x 14 mm x 14 mm
    Type Square type, Magnetic type
    Sensing distance 15 mm



    Sensing head size 50 mm x 14 mm x 14 mm
    Type Square type, Magnetic type
    Sensing distance 15 mm
    Response frequency 20 Hz max.
    Ambient temperature (Operating) -20 to 60 ℃
    Ambient temperature (Storage) -20 to 60 ℃
    Ambient humidity (Operating) 35 to 85 %
    Ambient humidity (Storage) 35 to 85 %
    Dielectric strength Between each terminals and the case: 1,000 VAC 50/60 Hz 1 min
    Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
    Shock resistance Destruction: 300 m/s2 3 times each in X, Y and Z directions
    Degree of protection IEC: IP40
    Connection method Terminal block models
    Material Sensor: ABS
    Magnet: ABS
