Description

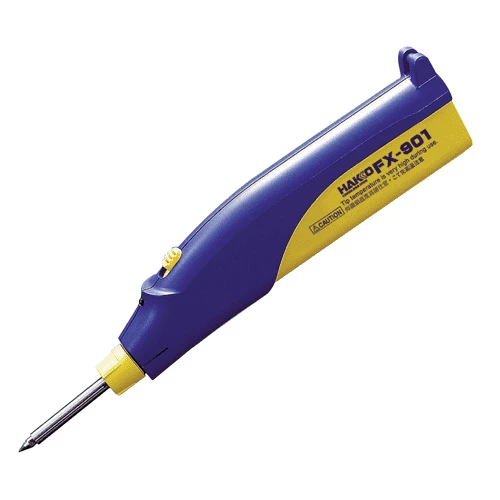

HAKKO Soldering iron/Battery-powered type FX-901
■ Easy-to-carry battery-powered soldering iron powered by AA alkaline batteries
■ Cordless design makes this iron very handy to use virtually anywhere
■ Recommended for hobby handicrafts such as stationary models and radio-controlled models
Cool design of cordless soldering iron
■ Quick&easy soldering tip replacement
·The quick-release soldering tip can be easily replaced.
■ Selective battery
·Various batteries including alkaline and nickel-hydrogen batteries can be used by changing the cartridge.
■ Easy soldering not only for hobby but for P.C. board processing
·Powerful cord and handy cordless soldering iron.
·Various soldering application is available such as P.W.B., field service and model or radio-controlled models.
1. INITIAL SET UP
Put the soldering tip through the hole in the nipple, then insert them into the unit as shown in Figure 1.
Turn the nipple approximately 90 degrees clockwise and screw it tightly on the unit. Be sure to secure the tip tightly. Attach the soldering tip while it is cold.
2. INSERTING THE BATTERIES
Slide down the release button to the UNLOCK position as shown in Figure 2. Remove the battery cartridge from the unit. Check the polarity and insert the batteries in the proper orientation.
Place the upper side of the battery cartridge onto the guide, slide the cartridge, and set the release button to the LOCK position.
3. HOW TO SOLDER
Turn the power switch ON. The LED lamp lights up, and the soldering tip heats up to be soldered after 40 seconds.
After soldering, be sure to turn the power switch OFF and attach the protective cap to the unit.
| Item No. |
224-0198 |
| Model No. |
FX-901 |
| Power supply |
AA×4 pcs. (not included) |
| Power consumption |
Alkaline batteries : 6V (6W) |
| Nickel hydrogen batteries (2150mAh) : 4.8V (5W) |
| Standard tip |
Shape-B (No.T11-B) |
| Battery life |
Alkaline batteries : 60 minutes |
| Nickel hydrogen batteries (2150mAh) : 120 minutes |
| Total length |
212mm |
| Weight |
76g |
[Measurement conditions]
- When using new batteries, performance will vary depending on batteries.
- The operating time was measured from when the temperature reached 300 ° C.
* When using the batteries except specified above, the operation will vary.
* Total length (w / o cap)
* Weight (w / o battery)
