Model
|
HPA-12
|
|

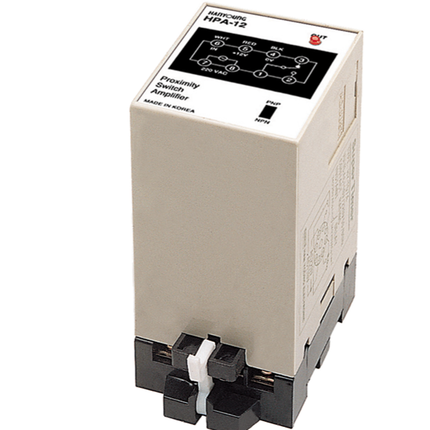

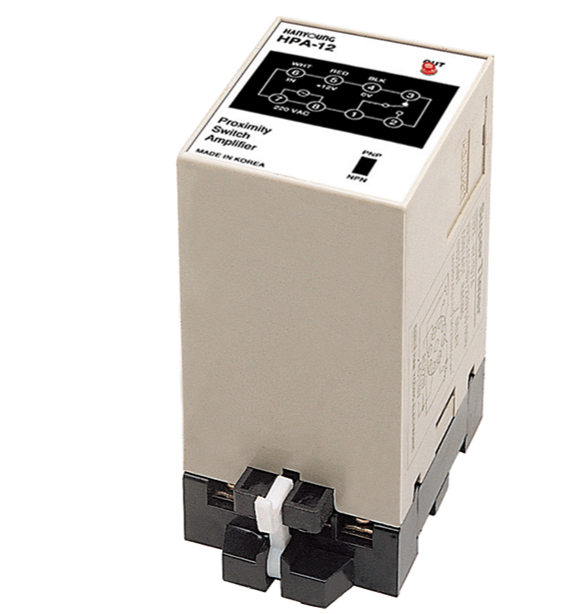

Appearance
|
 |
|
Rated Voltage
|
220 V a.c. (voltage fluctuation rate ±10 %) 50/60 Hz
|
|
Power Consumption
|
Approx. 4 VA
|
|
Power for Sensor
|
12 V d.c. (±10 %) below 50 mA
|
|
Connectable Sensor (Input)
|
Transistor output sensor of NPN, PNP
|
|
Control Output
|
Relay Contact : 1c
(250 V a.c. 3 A Resistive Load)
(Rated Load Lifetime : above 100 thousands times)
|
|
Response Time
|
Approx. 10 ㎳
|
|
Operating Ambient
Temperature/Humidity
|
-10 ~ 50 ℃, 35 ~ 85 % R.H. (with no freezing or no condensation)
|
|
Noise Immunity
|
Power cable : 1,500 VP, Pulse width : 0.5 μs (by a noise simulator)
|
|
Dielectric Strength
|
1,500 V a.c. for 1 minute (between the power and the output)
|
|
Insulated Resistance
|
20 MΩ (500 V d.c. at mega between the power and the output)
|
|
Vibration resistance
|
10 - 55 Hz (cycle for 1 minute), double amplitudes width : 1.5 ㎜, each X·Y·Z direction for 2 hours (but while the power is off)
|
|
Shock Resistance
|
100 m/s² (approx. 10 G), each X·Y·Z direction for 2 times(but while the power is off)
|
|
Weight
|
Approx. 260 ghan
|
