Description
Range and graduation (0.001mm or 0.01mm) differ by model. Pick the range of your bores and the resolution your tolerance needs.

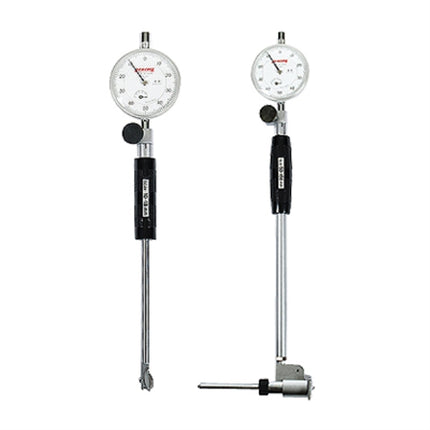

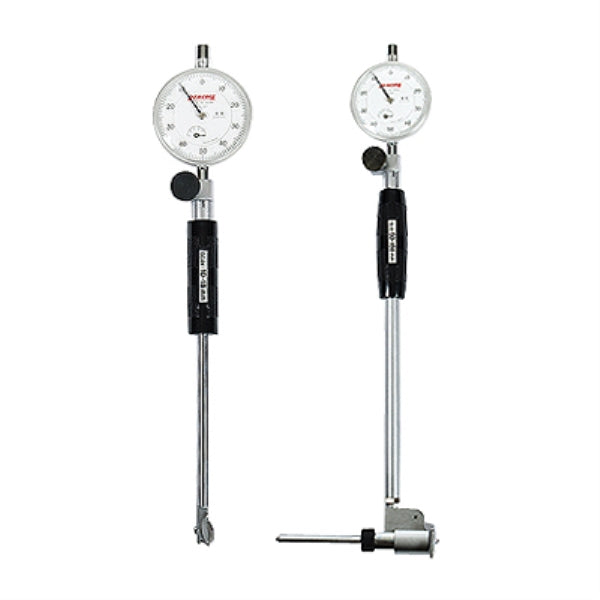

PEACOCK Bore Gauge, Shallow Groove (107F)
A bore gauge measures the inside diameter of holes with a micro head, comparing a measured bore to a set size. It is used for engine cylinders, bearing seats and precision bores. Machinists and inspectors use it for checks that need accuracy well beyond a caliper.
Key Features
- Set to a ring gauge or micrometer before measuring
- Rock the gauge in the bore to find the true diameter
- The listed range sets the smallest and largest bore it can measure
Specifications
| Model |
Specification |
Sold as |
| CG-01A |
10-18mmx0.01 |
1 pc |
| CG-1A |
18-35mmx0.01 |
1 pc |
| CG-2A |
35-60mmx0.01 |
1 pc |
| CG-3A |
50-100mmx0.01 |
1 pc |
| CG-3CA |
50-150mmx0.01 |
1 pc |
| CG-4A |
100~160mmx0.01 |
1 pc |
| CG-5A |
160-250mmx0.01 |
1 pc |
| CG-6A |
250-400mmx0.01 |
1 pc |
- Brand: PEACOCK
- Country of origin: Japan
About PEACOCK
PEACOCK (Ozaki Mfg.) of Japan makes dial gauges, dial thickness gauges, bore gauges and other mechanical measuring instruments.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- Lead time: approx. 45 days from order (imported / made-to-order item).
