Fixtures are designed for particular projector stage layouts, so check that the model is compatible with your projector before ordering.

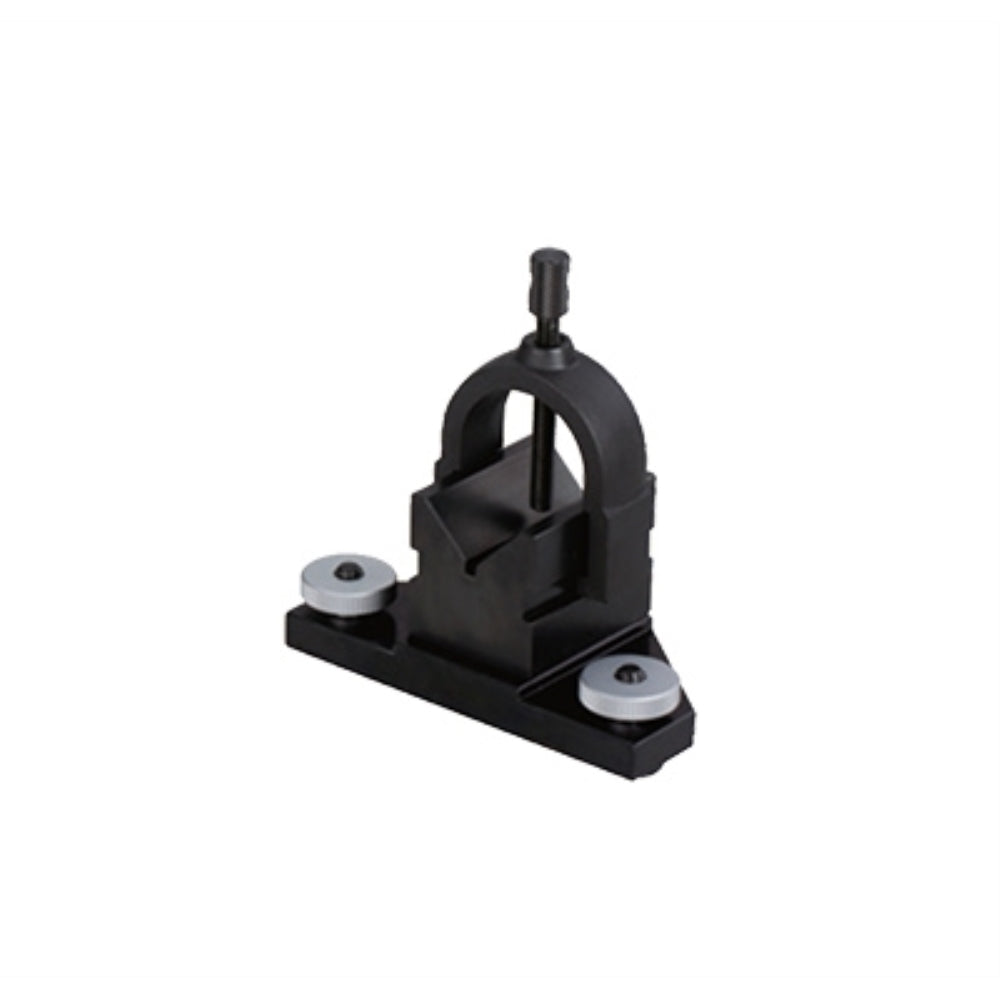

MITUTOYO V-Block Clamp for Profile Projector
A V-block clamp for a profile projector holds round or shafted workpieces steady on the stage so their outline can be measured accurately. It is used in inspection rooms and tool rooms to check pins, shafts, drills and small turned parts.
Key Features
- Seats cylindrical parts in a V-groove so the axis stays level and repeatable
- The clamp retains the part against vibration while the stage is moved
- Clean the groove and stage surface before every setup
- Align the part axis with the optical axis before reading the profile
Specifications
| Model |
Specification |
Sold as |
| 172-378 |
25mm |
1 pc |
- Brand: MITUTOYO
- Country of origin: Japan
About MITUTOYO
Mitutoyo of Japan is one of the world's largest makers of precision measuring instruments — micrometers, calipers, indicators and coordinate measuring machines.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- Lead time: approx. 90 days from order (imported / made-to-order item).
