Description
Pick the range and graduation to suit your load. Pulling beyond the maximum can overstretch the spring.

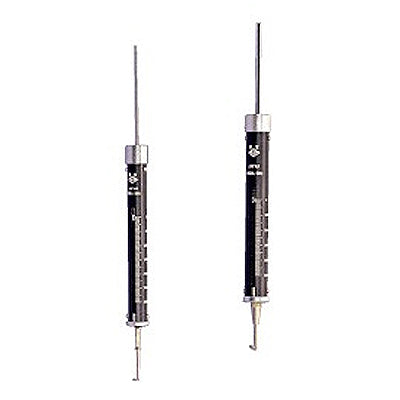

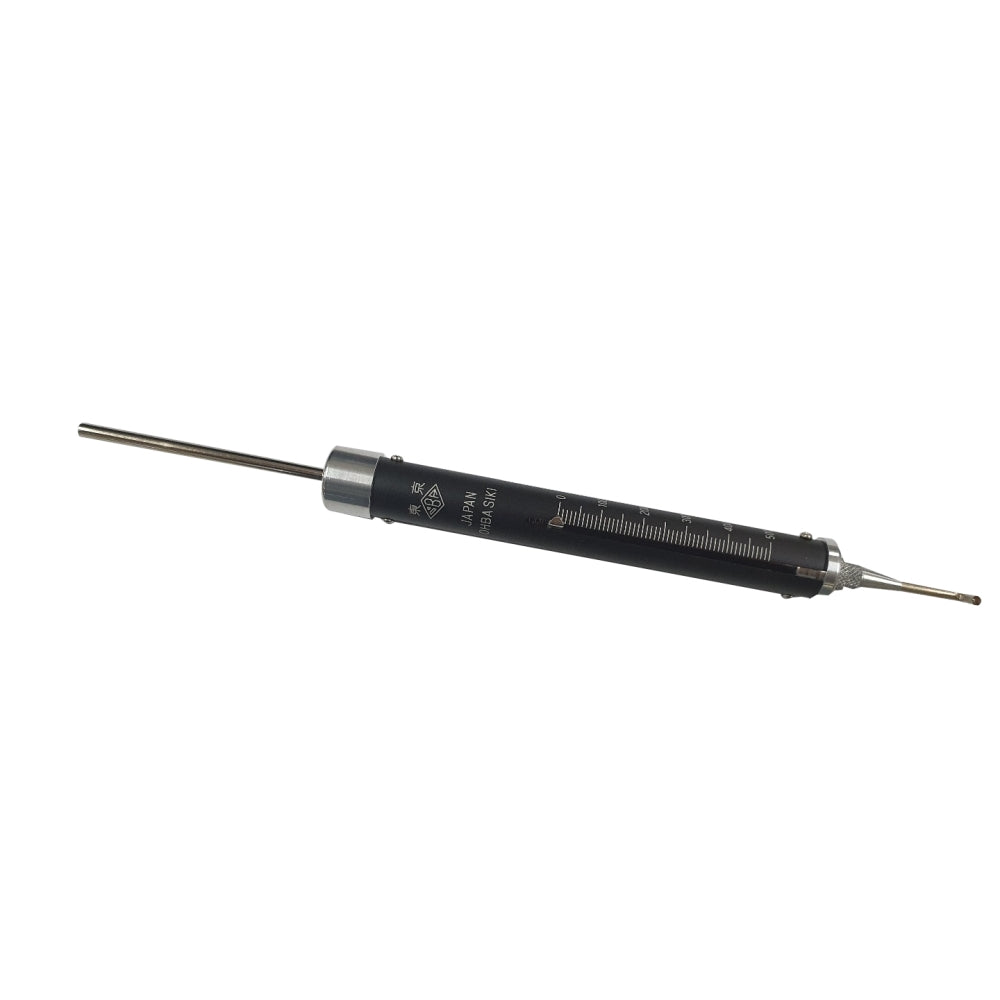

OBA Bar-Type Spring Tension Gauge
A bar-type spring tension gauge measures pulling force using a calibrated spring inside a bar body, with a scale printed on it. It is used to check spring loads, hook pull and small component forces on production lines and in workshops.
Key Features
- Read the force directly off the scale
- Choose a range so typical loads fall mid-scale
- Pull in line with the bar to avoid false readings
Specifications
| Model |
Specification |
Sold as |
| 1KG |
1000gx25g /L240mm |
1 pc |
| 10kg |
10000g/200g /L309mm |
1 pc |
| 110g |
110g/2g /L239mm |
1 pc |
| 200g |
200G |
1 pc |
| 20kg |
20,000g/200g / L496mm |
1 pc |
| 2kg |
2000g/50g /L240mm |
1 pc |
| 300g |
300g/5g / L239mm |
1 pc |
| 30g |
30g/1g/ L215mm |
1 pc |
| 30kg |
30,000g/250g/ L568mm |
1 pc |
| 3kg |
3000g/50g/ L275mm |
1 pc |
| 500g |
500g/10g /L240mm |
1 pc |
| 50g |
50g/1g /L215mm |
1 pc |
| 5kg |
5000g/100g /L309mm |
1 pc |
| 600G |
600G |
1 pc |
- Brand: OBA
- Country of origin: Japan
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- Lead time: approx. 45 days from order (imported / made-to-order item).
