Description
Pick the capacity so your typical force falls in the middle of the dial range, and avoid overloading the gauge.

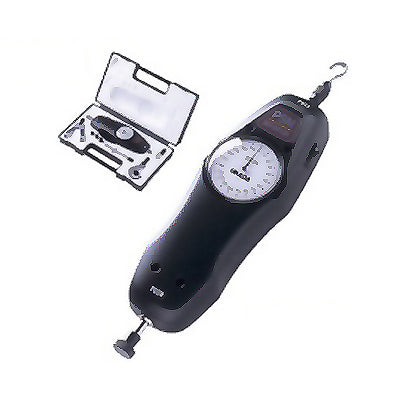

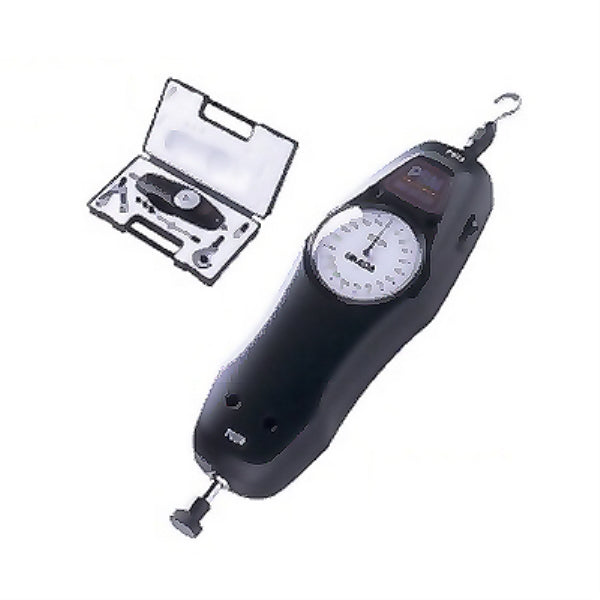

IMADA Precision Dial Push-Pull Gauge, 200 Divisions
A precision dial push-pull gauge is a mechanical force gauge with a dial that measures both pushing and pulling force. It is used for spring testing, switch operation force, peel testing and pull-out checks on production lines and in labs.
Key Features
- Reads tension and compression force on a single dial
- A tracking pointer holds the peak force until reset
- Fit a suitable chuck or attachment for the sample
Specifications
| Model |
Specification |
Sold as |
| PSM-2K |
2kgf/10gf |
1 pc |
| PSM-3K |
3kgf/20gf |
1 pc |
| PSM-5K |
5kgf/25gf |
1 pc |
| PSM-20K |
20kgf/100gf |
1 pc |
| PSM-30K |
30kgf/200gf |
1 pc |
| PSM-50K |
50kgf/250gf |
1 pc |
- Brand: IMADA
- Country of origin: Japan
About IMADA
IMADA of Japan makes force measurement equipment, including digital and mechanical push-pull gauges and test stands.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- Lead time: approx. 45 days from order (imported / made-to-order item).
