Description
Stand and gauge must match in load capacity and mounting; confirm the stand's rating covers your gauge's maximum force.

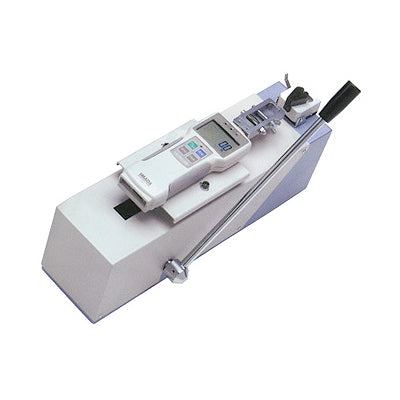

IMADA Wire Harness Stand for Push-Pull Gauge
A wire harness stand for a push-pull gauge holds a wire or harness connector while the gauge pulls it, so connector retention and terminal pull-out strength can be tested. It is used in electrical assembly and automotive wiring quality checks.
Key Features
- Secures the connector body so that only the wire or terminal is pulled
- Gives repeatable, aligned tests across many harness samples
- Make sure the gauge is mounted square to the pull direction
- Keep fixture contact areas clean to avoid slipping
Specifications
| Model |
Specification |
Sold as |
| LH-500N |
85mm/500n.m |
1 pc |
- Brand: IMADA
- Country of origin: Japan
About IMADA
IMADA of Japan makes force measurement equipment, including digital and mechanical push-pull gauges and test stands.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- Lead time: approx. 45 days from order (imported / made-to-order item).
- Heavy or high-value item: online checkout is disabled. Please request a quote for freight and pricing.
