Choose the face size for the sample, and make sure the thread fits your gauge.

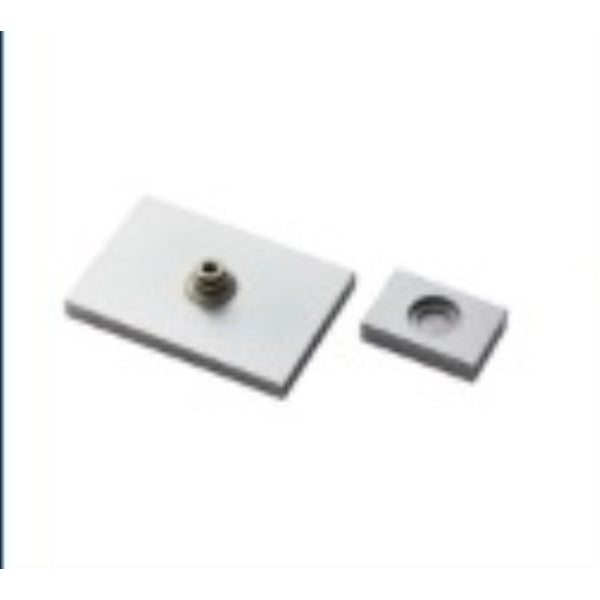

IMADA Compression Square Flat Fixture for Push-Pull Gauge
A compression square flat fixture is a square-faced plate that fits a push-pull force gauge and presses on a sample over a rectangular area. It is used for compression tests on flat or box-shaped items such as pads, keys, packaging and foam. Quality labs use it to get uniform load.
Key Features
- Square face fits flat or rectangular samples
- Larger faces spread load over more area
- Fit onto the gauge shaft hand-tight
Specifications
| Model |
Specification |
Sold as |
| SQ-5030 |
30x20mm/5000n.m |
1 pc |
| SQ-5075 |
75x50mm/5000n.m |
1 pc |
| SQ-5150 |
150x100mm/5000n.m |
1 pc |
- Brand: IMADA
- Country of origin: Japan
About IMADA
IMADA of Japan makes force measurement equipment, including digital and mechanical push-pull gauges and test stands.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- Lead time: approx. 45 days from order (imported / made-to-order item).
