Description
Gauges are specific to thread size, pitch and tolerance class, so check all three carefully.

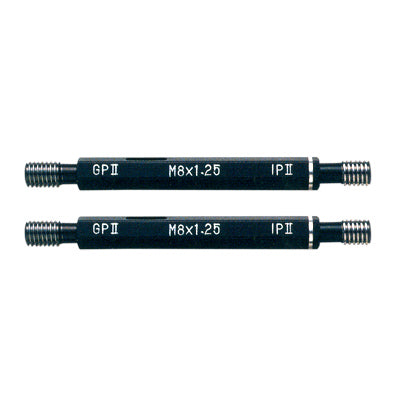

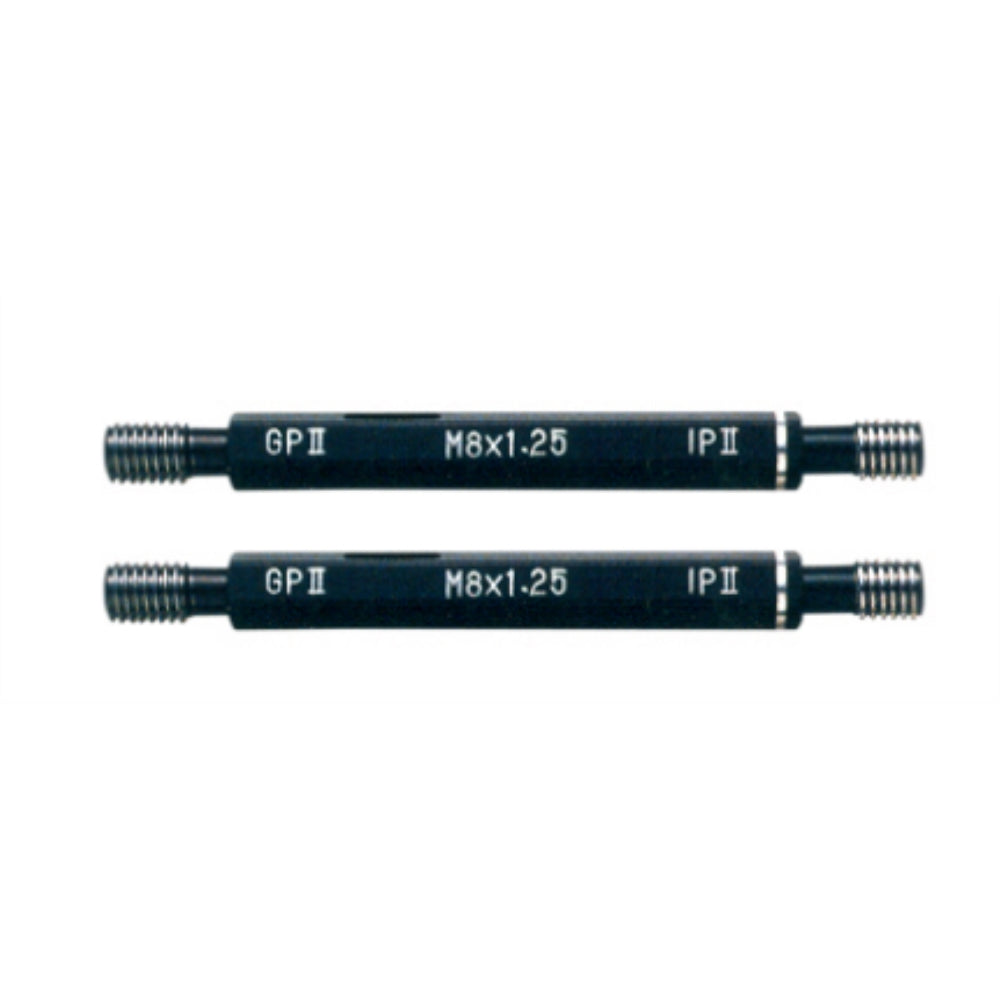

OJIYASEIKI Thread Plug Gauge GPIP2
A thread plug gauge checks the internal thread of a tapped hole against size and tolerance limits. Machinists and inspectors use it as a pass/fail check on tapped holes in production, with a go end and a not-go end.
Key Features
- Go end should thread in, not-go end should not
- Screw it in gently by hand and do not force it
- Keep it clean and lightly oiled between uses
Specifications
| Model |
Specification |
Sold as |
| 014P-030 |
M1.4X0.30 |
1 pc |
| 10P-100 |
M10X1.00 |
1 pc |
| 10P-125 |
M10X1.25 |
1 pc |
| 10P-150 |
M10X1.50 |
1 pc |
| 12P-100 |
M12X1.00 |
1 pc |
| 12P-125 |
M12X1.25 |
1 pc |
| 12P-150 |
M12X1.50 |
1 pc |
| 12P-175 |
M12X1.75 |
1 pc |
| 14P-100 |
M14X1.00 |
1 pc |
| 14P-125 |
M14X1.25 |
1 pc |
| 14P-150 |
M14X1.50 |
1 pc |
| 14P-200 |
M14X2.00 |
1 pc |
| 16P-100 |
M16X1.00 |
1 pc |
| 16P-150 |
M16X1.50 |
1 pc |
| 16P-200 |
M16X2.00 |
1 pc |
| 18P-100 |
M18X1.00 |
1 pc |
| 18P-150 |
M18X1.50 |
1 pc |
| 18P-250 |
M18X2.50 |
1 pc |
| 20P-150 |
M20X1.50 |
1 pc |
| 20P-250 |
M20X2.50 |
1 pc |
| 22P-150 |
M22X1.50 |
1 pc |
| 22P-250 |
M22X2.50 |
1 pc |
| 24P-150 |
M24X1.50 |
1 pc |
| 24P-300 |
M24X3.00 |
1 pc |
| 30P-150 |
M30X1.50 |
1 pc |
| 30P-350 |
M30X3.50 |
1 pc |
| 36P-150 |
M36X1.50 |
1 pc |
| 36P-400 |
M36X4.00 |
1 pc |
| 52P-075 |
M52X0.75 |
1 pc |
| 016P-035 |
M1.6X0.35 |
1 pc |
| 080P-050 |
M8.0X0.50 |
1 pc |
| 12P-075 |
M12X0.75 |
1 pc |
| 13P-150 |
M13X1.50 |
1 pc |
| 22P-100 |
M22X1.00 |
1 pc |
| 27P-300 |
M27X3.00 |
1 pc |
| 32P-150 |
M32X1.50 |
1 pc |
| W20P-14 |
W20X14 GPIP2 |
1 pc |
- Brand: OJIYASEIKI
- Country of origin: Japan
About OJIYASEIKI
OJIYASEIKI (Ojiya Seiki) of Japan makes limit gauges, including plug, ring and thread gauges for dimensional inspection.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- Lead time: approx. 45 days from order (imported / made-to-order item).
