Description
Gauges are specific to thread size, pitch and tolerance class, so check all three carefully.

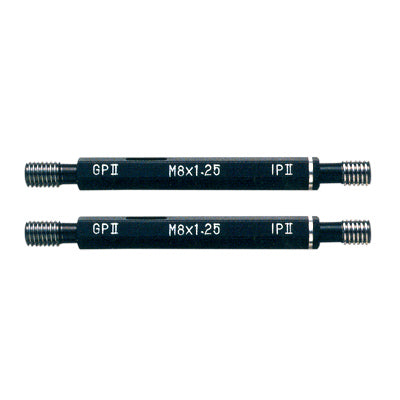

OJIYASEIKI Thread Plug Gauge GPIP2B
A thread plug gauge checks the internal thread of a tapped hole against size and tolerance limits. Machinists and inspectors use it as a pass/fail check on tapped holes in production, with a go end and a not-go end.
Key Features
- Go end should thread in, not-go end should not
- Screw it in gently by hand and do not force it
- Keep it clean and lightly oiled between uses
Specifications
| Model |
Specification |
Sold as |
| 017P-035 |
M1.7X0.35 |
1 pc |
| 020P-040 |
M2.0X0.40 |
1 pc |
| 024P-045 |
M2.4X0.45 |
1 pc |
| 025P-045 |
M2.5X0.45 |
1 pc |
| 026P-045 |
M2.6X0.45 |
1 pc |
| 030P-050 |
M3.0X0.50 |
1 pc |
| 030P-060 |
M3.0X0.60 |
1 pc |
| 040P-050 |
M4.0X0.50 |
1 pc |
| 040P-070 |
M4.0X0.70 |
1 pc |
| 050P-050 |
M5.0X0.50 |
1 pc |
| 050P-080 |
M5.0X0.80 |
1 pc |
| 060P-075 |
M6.0X0.75 |
1 pc |
| 060P-100 |
M6.0X1.0 |
1 pc |
| 080P-100 |
M8.0X1.0 |
1 pc |
| 080P-125 |
M8.0X1.25 |
1 pc |
| 3/4P-16 |
3/4X16UNF |
1 pc |
| 1-1/8P-18 |
1-1/8-18UNEF |
1 pc |
| 1/4P-20 |
1/4X20UNC |
1 pc |
- Brand: OJIYASEIKI
- Country of origin: Japan
About OJIYASEIKI
OJIYASEIKI (Ojiya Seiki) of Japan makes limit gauges, including plug, ring and thread gauges for dimensional inspection.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- Lead time: approx. 45 days from order (imported / made-to-order item).
