Description
Check the nominal size and tolerance class (such as H7) carefully.

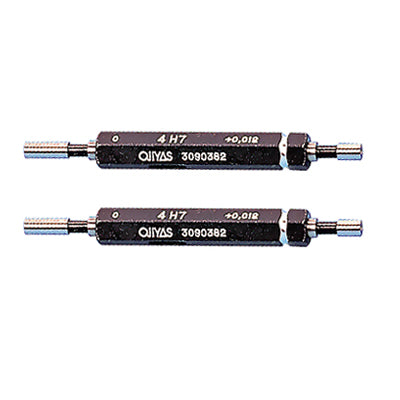

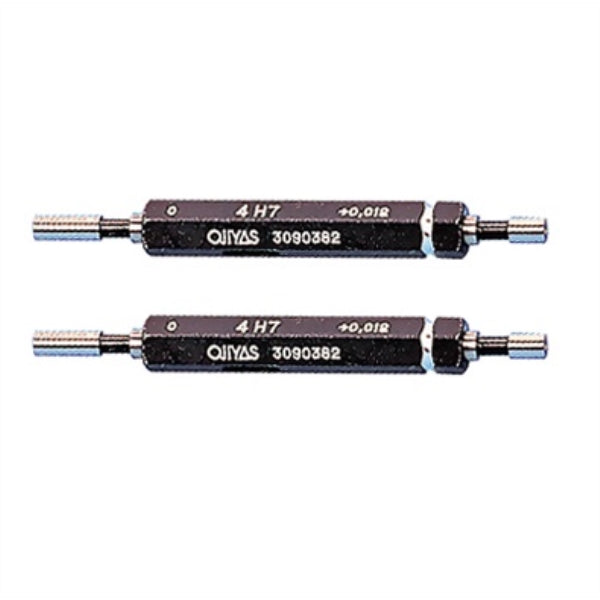

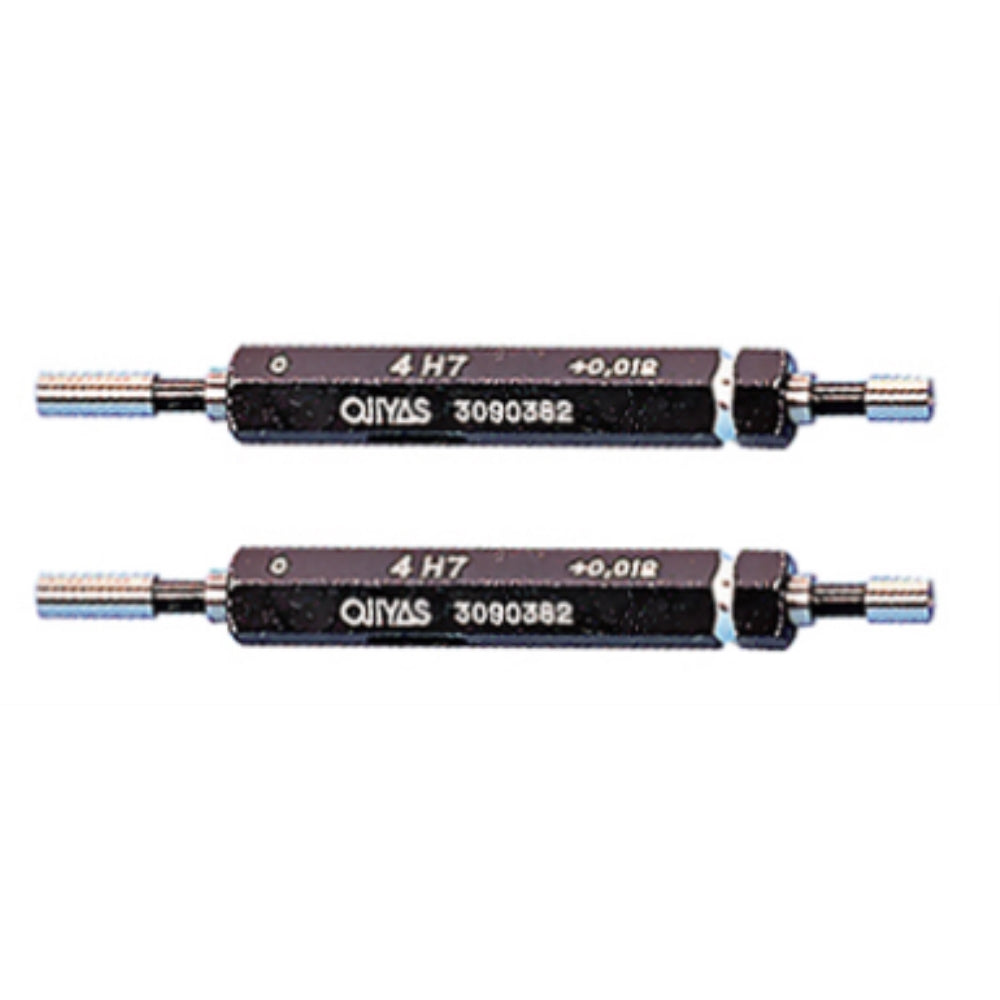

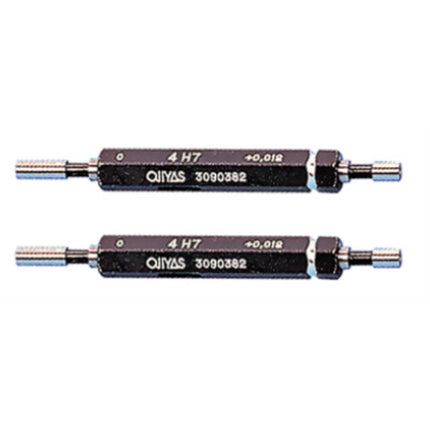

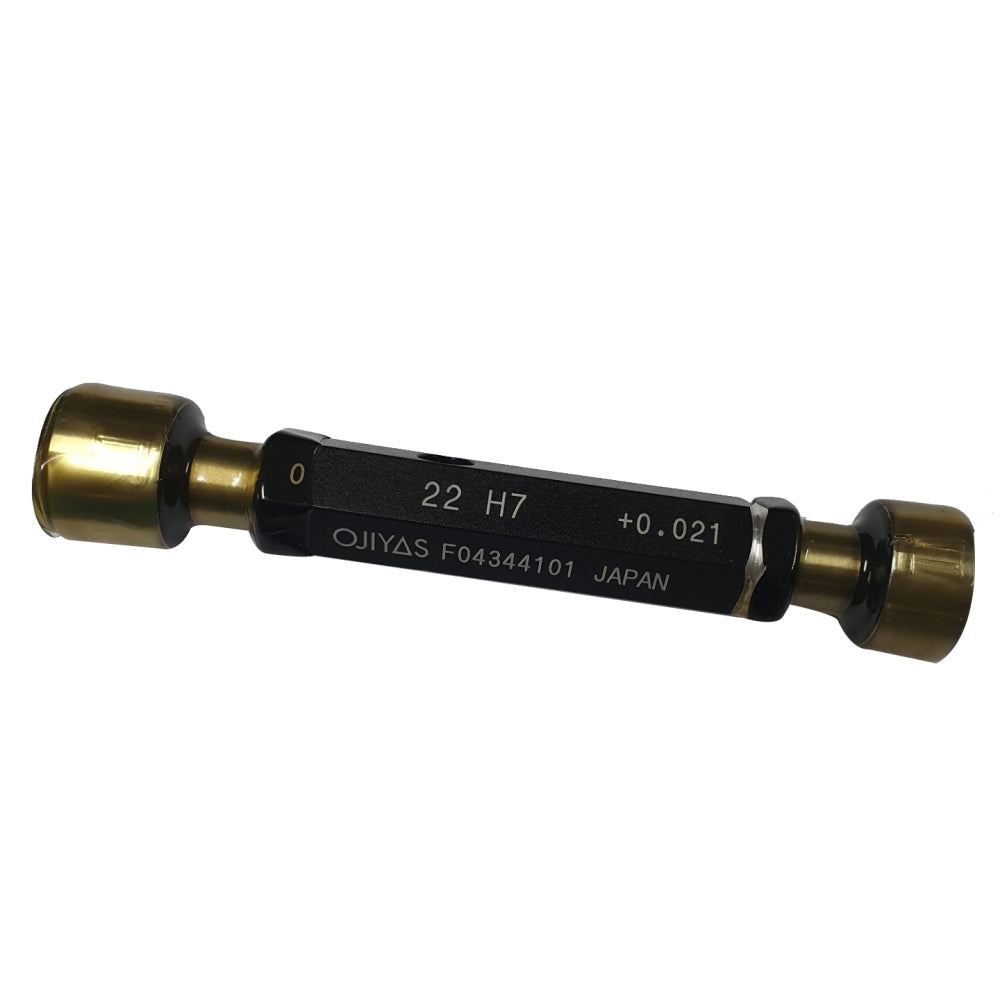

OJIYASEIKI Cylindrical Limit Plug Gauge
A cylindrical limit plug gauge checks hole diameters to a tolerance with a go end and a no-go end. If the go end enters and the no-go end does not, the hole is in tolerance. Machinists and inspectors use them for production checks.
Key Features
- Go end must enter and no-go end must not
- Each gauge is made for one size and tolerance
- Clean the hole and gauge before checking
Specifications
| Model |
Specification |
Sold as |
| P-02H7 |
2XH7 |
1 pc |
| P-03H7 |
3XH7 |
1 pc |
| P-04H7 |
4XH7 |
1 pc |
| P-05H7 |
5XH7 |
1 pc |
| P-06H7 |
6XH7 |
1 pc |
| P-07H7 |
7XH7 |
1 pc |
| P-08H7 |
8XH7 |
1 pc |
| P-09H7 |
9XH7 |
1 pc |
| P-10H7 |
10XH7 |
1 pc |
| P-11H7 |
11XH7 |
1 pc |
| P-12H7 |
12XH7 |
1 pc |
| P-13H7 |
13XH7 |
1 pc |
| P-14H7 |
14XH7 |
1 pc |
| P-16H7 |
16XH7 |
1 pc |
| P-17H7 |
17XH7 |
1 pc |
| P-18H7 |
18XH7 |
1 pc |
| P-19H7 |
19XH7 |
1 pc |
| P-20H7 |
20XH7 |
1 pc |
| P-21H7 |
21XH7 |
1 pc |
| P-22H7 |
22XH7 |
1 pc |
| P-23H7 |
23XH7 |
1 pc |
| P-24H7 |
24XH7 |
1 pc |
| P-25H7 |
25XH7 |
1 pc |
| P-26H7 |
26XH7 |
1 pc |
| P-27H7 |
27XH7 |
1 pc |
| P-28H7 |
28XH7 |
1 pc |
| P-29H7 |
29XH7 |
1 pc |
| P-30H7 |
30XH7 |
1 pc |
| P-32H7 |
32XH7 |
1 pc |
| P-42H7 |
42XH7 |
1 pc |
| P-04E7 |
4XE7 |
1 pc |
| P-10H6 |
10XH6 |
1 pc |
| P-41H7 |
41XH7 |
1 pc |
| P-43H7 |
43XH7 |
1 pc |
| P-44H7 |
44XH7 |
1 pc |
- Brand: OJIYASEIKI
- Country of origin: Japan
About OJIYASEIKI
OJIYASEIKI (Ojiya Seiki) of Japan makes limit gauges, including plug, ring and thread gauges for dimensional inspection.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- Lead time: approx. 45 days from order (imported / made-to-order item).
