Description
Gauges are specific to thread size, pitch and tolerance class, so check all three carefully.

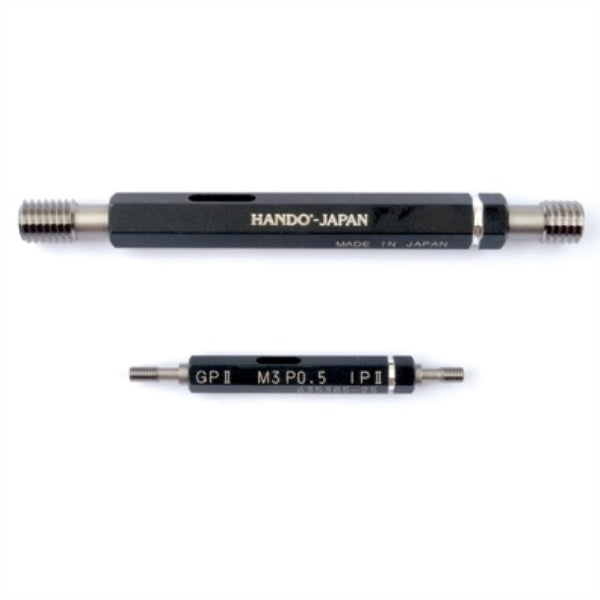

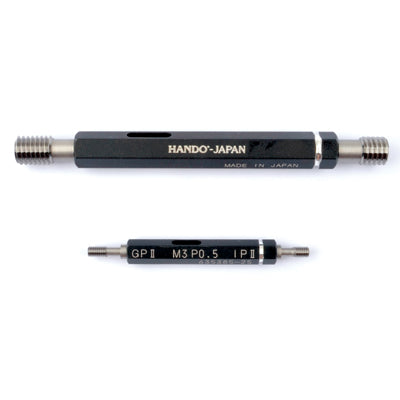

HANDO Thread Plug Gauge GPIP2
A thread plug gauge checks the internal thread of a tapped hole against size and tolerance limits. Machinists and inspectors use it as a pass/fail check on tapped holes in production, with a go end and a not-go end.
Key Features
- Go end should thread in, not-go end should not
- Screw it in gently by hand and do not force it
- Keep it clean and lightly oiled between uses
Specifications
| Model |
Specification |
Sold as |
| H014P-030 |
M1.4X0.3 |
1 pc |
| H016P-035 |
M1.6X0.35 |
1 pc |
| H017P-035 |
M1.7X0.35 |
1 pc |
| H018P-035 |
M1.8X0.35 |
1 pc |
| H020P-040 |
M2.0X0.40 |
1 pc |
| H023P-040 |
M2.3X0.4 |
1 pc |
| H025P-045 |
M2.5X0.45 |
1 pc |
| H026P-045 |
M2.6X0.45 |
1 pc |
| H030P-050 |
M3.0X0.5 |
1 pc |
| H040P-070 |
M4.0X0.7 |
1 pc |
| H050P-080 |
M5.0X0.8 |
1 pc |
| H060P-100 |
M6.0X1.00 |
1 pc |
| H070P-100 |
M7.0X1.0 |
1 pc |
| H080P-100 |
M8.0X1.0 |
1 pc |
| H080P-125 |
M8.0X1.25 |
1 pc |
| H10P-100 |
M10X1.0 |
1 pc |
| H10P-125 |
M10X1.25 |
1 pc |
| H10P-150 |
M10X1.5 |
1 pc |
| H12P-125 |
M12X1.25 |
1 pc |
| H12P-150 |
M12X1.5 |
1 pc |
| H12P-175 |
M12X1.75 |
1 pc |
| H14P-150 |
M14X1.5 |
1 pc |
| H14P-200 |
M14X2.0 |
1 pc |
| H16P-150 |
M16X1.5 |
1 pc |
| H16P-200 |
M16X2.0 |
1 pc |
| H18P-150 |
M18X1.5 |
1 pc |
| H18P-250 |
M18X2.5 |
1 pc |
| H20P-150 |
M20X1.5 |
1 pc |
| H20P-250 |
M20X2.5 |
1 pc |
| H65P-200 |
M65X2.0 |
1 pc |
| H80P-200 |
M80X2.0 |
1 pc |
| H100P-200 |
M100X2.0 |
1 pc |
- Brand: HANDO
- Country of origin: Japan
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- Lead time: approx. 60 days from order (imported / made-to-order item).
